SH6918F700APEP - Ohmite

Description: Current Sense Resistors - SMD .00005OHM 1% 25W 100PPM

Download SH6918F700APEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SH6918F700APEP - Ohmite - PCB symbol
click to zoom
PCB Footprints

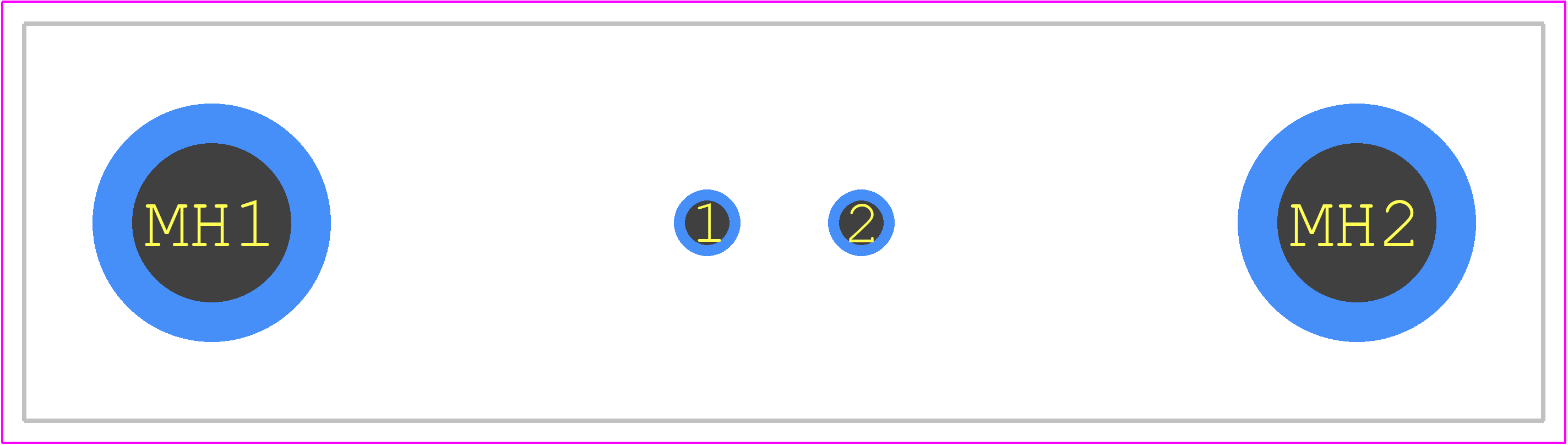

SH6918F700APEP - Ohmite PCB footprint - Other - Other - SH6918F700APEP
click to zoom
3D Models
SH6918F700APEP - Ohmite - 3D model - Other - SH6918F700APEP
click to zoom

SH6918F700APEP Details

  • Manufacturer Part Number:

    SH6918F700APEP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.29.00.00

  • Manufacturer:

    Ohmite Mfg Co

  • YTEOL:

    6.3

  • Construction:

    Rectangular

  • Mounting Feature:

    CHASSIS MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Height:

    3 mm

  • Package Length:

    69 mm

  • Package Style:

    RECTANGULAR

  • Package Width:

    18 mm

  • Rated Power Dissipation (P):

    25 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.00005 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL STRIP

  • Temperature Coefficient:

    175 ppm/°C

  • Terminal Shape:

    LUG

  • Tolerance:

    1%
