SH70M12W3AG - STMicroelectronics

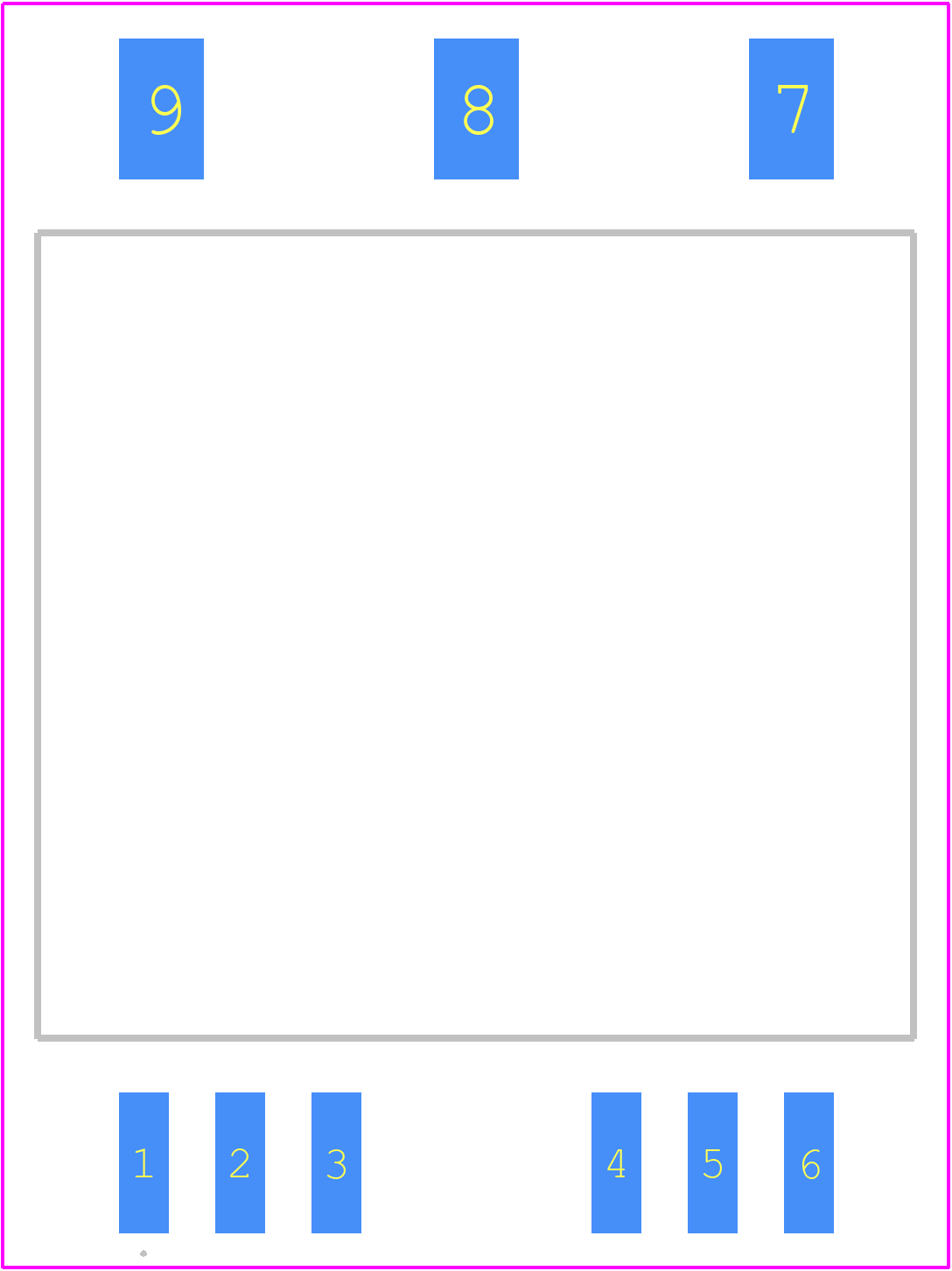

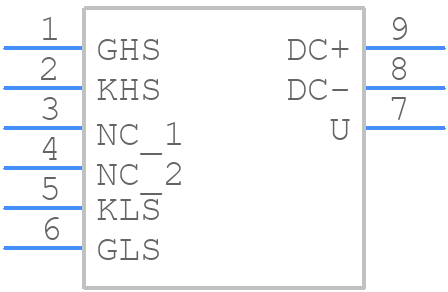

SH70M12W3AG Details

• Manufacturer Part Number:

  SH70M12W3AG

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  STMicroelectronics

• YTEOL:

  7

• Case Connection:

  ISOLATED

• Configuration:

  SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  1200 V

• Drain Current-Max (ID):

  28 A

• Drain-source On Resistance-Max:

  0.078 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  5 pF

• JESD-30 Code:

  R-PDSO-G9

• Number of Elements:

  2

• Number of Terminals:

  9

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  114 W

• Pulsed Drain Current-Max (IDM):

  80 A

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON CARBIDE
