A thermal pad is recommended under the IC, and a 2-layer or 4-layer PCB with a solid ground plane is suggested to reduce thermal resistance. A minimum of 2 oz copper thickness is recommended for the thermal pad.
The device requires a soft-start power-on sequence to prevent inrush currents. A recommended power-on sequence is: VCC, then EN, then VIN. For power-off, the sequence should be reversed.
The maximum allowed voltage on the EN pin is VCC + 0.3V. Exceeding this voltage may damage the device.
The device requires a specific power sequencing to prevent damage. The recommended sequence is: VCC, then EN, then VIN. A power sequencing circuit or a dedicated power management IC can be used to ensure proper sequencing.
The recommended operating frequency range for the SH8K37GZETB is 100 kHz to 2 MHz. Operating outside this range may affect device performance and stability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SH8K37GZETB Overview

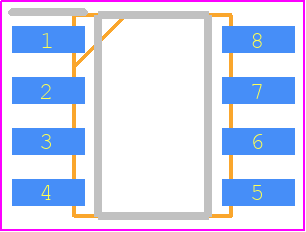

Use the download button to access the SH8K37GZETB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SH8K3,
or try a keyword search, such as Power Field-Effect Transistors
