SHA104-MAVDA-T - Microchip

Description: Security ICs / Authentication ICs Client MAC, 105C, I2C, 5K, UDFN

Download SHA104-MAVDA-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

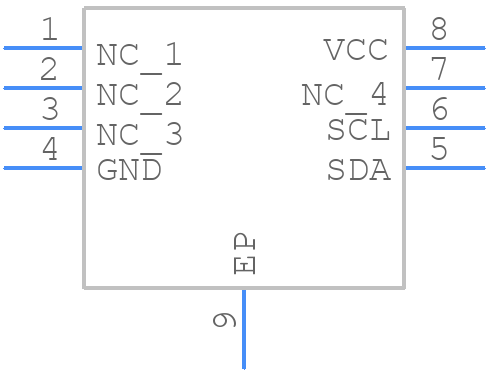

SHA104-MAVDA-T - Microchip - PCB symbol
click to zoom
PCB Footprints
SHA104-MAVDA-T - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - SHA104-MAVDA-T*
click to zoom
3D Models
SHA104-MAVDA-T - Microchip - 3D model - Small Outline No-lead - SHA104-MAVDA-T*
click to zoom

SHA104-MAVDA-T Details

  • Manufacturer Part Number:

    SHA104-MAVDA-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    UDFN-8

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR
