SHF-106-01-L-D-SM-LC footprint, schematic symbol and 3D model by SAMTEC

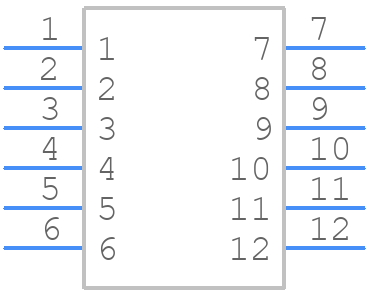

Symbol

click to zoom

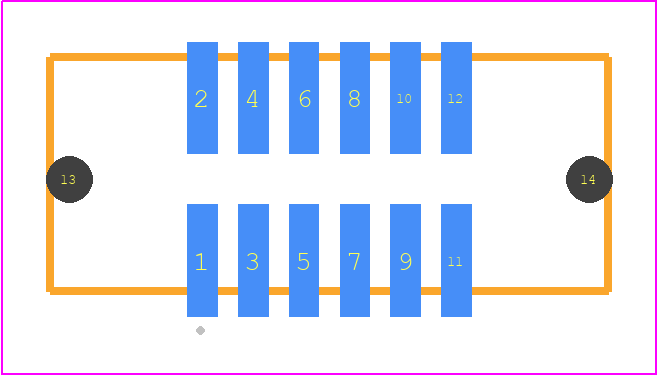

PCB Footprints

SHF-106-01-L-D-SM-LC - SAMTEC PCB footprint - Other - Other - SHF-106-01-X-D-SM-LC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SHF-106-01-L-D-SM-LC
Part Number SHF-106-01-L-D-SM-LC
Manufacturer SAMTEC
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - SHF-106-01-X-D-SM-LC
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SHF-106-01-L-D-SM-LC Details

Manufacturer Part Number:
SHF-106-01-L-D-SM-LC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks, 2 Days
Manufacturer:
Samtec Inc
YTEOL:
12
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
12

SHF-106-01-L-D-SM-LC Frequently Asked Questions (FAQs)

Samtec provides a recommended PCB layout and land pattern in their Application Notes document (AN-105) which can be found on their website. It's essential to follow these guidelines to ensure proper mating and minimize signal integrity issues.
Yes, the SHF-106-01-L-D-SM-LC is designed for high-speed applications and is suitable for differential signals. However, it's crucial to follow proper layout and routing guidelines to minimize signal skew and ensure signal integrity.
The operating temperature range for the SHF-106-01-L-D-SM-LC is -55°C to +125°C. However, it's essential to note that the temperature range may affect the connector's performance and reliability.
Yes, the SHF-106-01-L-D-SM-LC is compatible with lead-free soldering processes. Samtec ensures that their connectors meet the requirements of the RoHS directive and are compatible with lead-free soldering.
The SHF-106-01-L-D-SM-LC has a mating cycle life of 500 cycles minimum. However, this may vary depending on the application, environment, and usage.
