SHF-110-01-L-D-TH-TR - SAMTEC

Description: SAMTEC - SHF-110-01-L-D-TH-TR - HEADER, 1.27MM, 2X10WAY

Download SHF-110-01-L-D-TH-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SHF-110-01-L-D-TH-TR - SAMTEC - PCB symbol
click to zoom
PCB Footprints

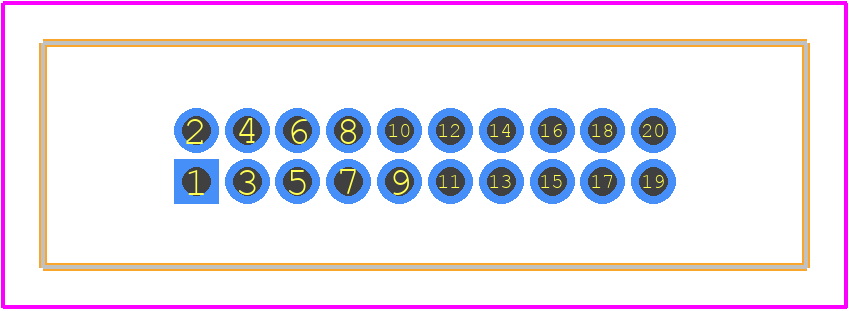

SHF-110-01-L-D-TH-TR - SAMTEC PCB footprint - Other - Other - SHF-110-01-L-D-TH-TR-3
click to zoom
3D Models
SHF-110-01-L-D-TH-TR - SAMTEC - 3D model - Other - SHF-110-01-L-D-TH-TR-3
click to zoom

SHF-110-01-L-D-TH-TR Details

  • Manufacturer Part Number:

    SHF-110-01-L-D-TH-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.15

  • Additional Feature:

    SHROUDED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

SHF-110-01-L-D-TH-TR Frequently Asked Questions (FAQs)

  • Samtec provides a recommended PCB layout and land pattern for the SHF-110-01-L-D-TH-TR connector in their application notes and design guides, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and reliable connections.
  • Yes, the SHF-110-01-L-D-TH-TR connector is designed for high-speed signal applications, with a bandwidth of up to 40 Gbps. However, it's crucial to follow proper PCB design and layout guidelines to minimize signal loss and ensure reliable data transmission.
  • The SHF-110-01-L-D-TH-TR connector has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the SHF-110-01-L-D-TH-TR connector is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The SHF-110-01-L-D-TH-TR connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent mating and unmating.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHF-110-01-L-D-TH-TR Overview

Use the download button to access the SHF-110-01-L-D-TH-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHF-1, or try a keyword search, such as Headers and Edge Type Connectors
