The recommended torque for the screws on the SHF-110-01-L-D-TH connector is 0.5-1.5 in-lbs (0.056-0.169 Nm).
Yes, the SHF-110-01-L-D-TH connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
The maximum operating temperature for the SHF-110-01-L-D-TH connector is 125°C (257°F).
Yes, the SHF-110-01-L-D-TH connector is compatible with lead-free soldering processes. Samtec recommends following the recommended soldering profile and guidelines for lead-free soldering.
Samtec provides recommended PCB layout and footprint guidelines for the SHF-110-01-L-D-TH connector in their datasheet and application notes. It's recommended to consult with Samtec's technical support for specific design requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SHF-110-01-L-D-TH Overview

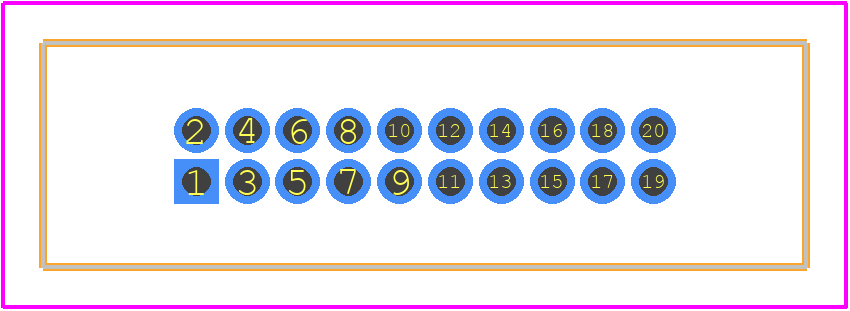

Use the download button to access the SHF-110-01-L-D-TH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHF-1,
or try a keyword search, such as Headers and Edge Type Connectors
