SHF-115-01-L-D-RA - SAMTEC

Description: Samtec SHF, 1.27mm Pitch, 30 Way, 2 Row, Right Angle PCB Header, Through Hole

Download SHF-115-01-L-D-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SHF-115-01-L-D-RA - SAMTEC - PCB symbol
click to zoom
PCB Footprints

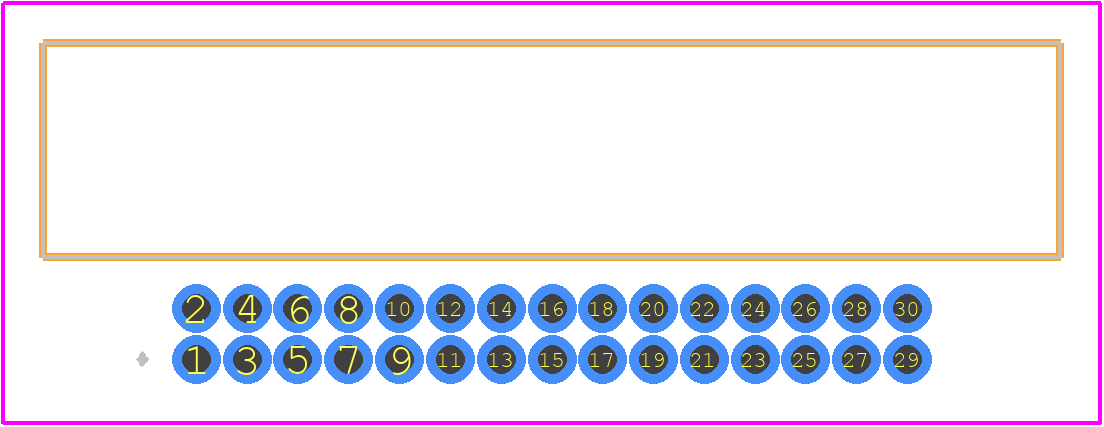

SHF-115-01-L-D-RA - SAMTEC PCB footprint - Other - Other - SHF-115-01-L-D-RA-1
click to zoom
3D Models
SHF-115-01-L-D-RA - SAMTEC - 3D model - Other - SHF-115-01-L-D-RA-1
click to zoom

SHF-115-01-L-D-RA Details

  • Manufacturer Part Number:

    SHF-115-01-L-D-RA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.15

  • Additional Feature:

    SHROUDED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

SHF-115-01-L-D-RA Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • While the datasheet specifies a maximum PCB thickness of 1.57 mm, Samtec recommends consulting with their technical support team for custom PCB thicknesses. They may be able to provide a custom solution or recommend an alternative product.
  • The maximum operating temperature range for the SHF-115-01-L-D-RA connector is -55°C to 125°C, but this may vary depending on the specific application and environment. It's recommended to consult with Samtec's technical support team for specific temperature requirements.
  • Yes, the SHF-115-01-L-D-RA connector is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and hazardous materials.
  • The mating cycle life of the SHF-115-01-L-D-RA connector is 500 cycles minimum, but this may vary depending on the specific application and environment. It's recommended to consult with Samtec's technical support team for specific mating cycle life requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHF-115-01-L-D-RA Overview

Use the download button to access the SHF-115-01-L-D-RA schematic symbol, PCB footprint, and 3D model.
