SHF-115-01-L-D-SM footprint, schematic symbol and 3D model by SAMTEC

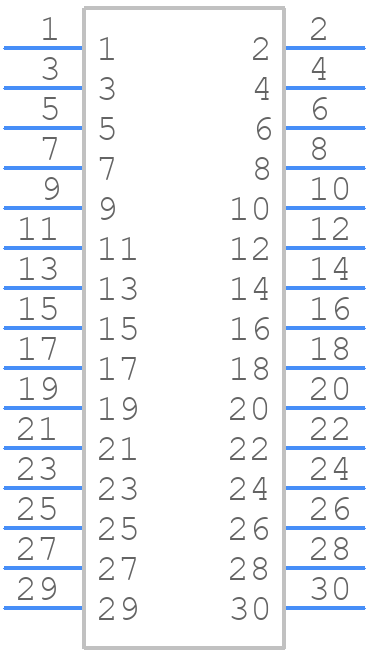

Symbol

click to zoom

PCB Footprints

SHF-115-01-L-D-SM - SAMTEC PCB footprint - Other - Other - SHF-115-01-L-D-SM-2

click to zoom

3D Models

SHF-115-01-L-D-SM - SAMTEC - 3D model - Other - SHF-115-01-L-D-SM-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SHF-115-01-L-D-SM
Part Number SHF-115-01-L-D-SM
Manufacturer SAMTEC
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - SHF-115-01-L-D-SM-2
Released Date Nov 18, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SHF-115-01-L-D-SM Details

Manufacturer Part Number:
SHF-115-01-L-D-SM
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
10 Weeks
Manufacturer:
Samtec Inc
YTEOL:
9.4
Additional Feature:
SHROUDED
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
30

SHF-115-01-L-D-SM Frequently Asked Questions (FAQs)

The recommended mating sequence for SHF-115-01-L-D-SM is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
To ensure reliable connections, make sure to clean the contacts before mating, apply a suitable contact lubricant, and maintain a consistent mating force. Also, ensure the connector is properly seated and secured to the PCB.
The maximum operating temperature for SHF-115-01-L-D-SM is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
Yes, the SHF-115-01-L-D-SM is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and securing procedures to ensure the connector remains securely attached to the PCB.
The recommended torque for the screw locks on SHF-115-01-L-D-SM is 0.5-1.5 in-lbs (0.056-0.169 Nm). Over-torquing may damage the connector or PCB.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SHF-115-01-L-D-SM Overview

Use the download button to access the SHF-115-01-L-D-SM schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SHF-1, or try a keyword search, such as Headers and Edge Type Connectors
