Technical Content
Part Image

SHF-125-01-L-D-RA - SAMTEC

Description: Samtec SHF Series, Series Number 125, 1.27mm Pitch 50 Way 2 Row Right Angle PCB Header, Solder Termination

Download SHF-125-01-L-D-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SHF-125-01-L-D-RA - SAMTEC - PCB symbol
click to zoom
PCB Footprints

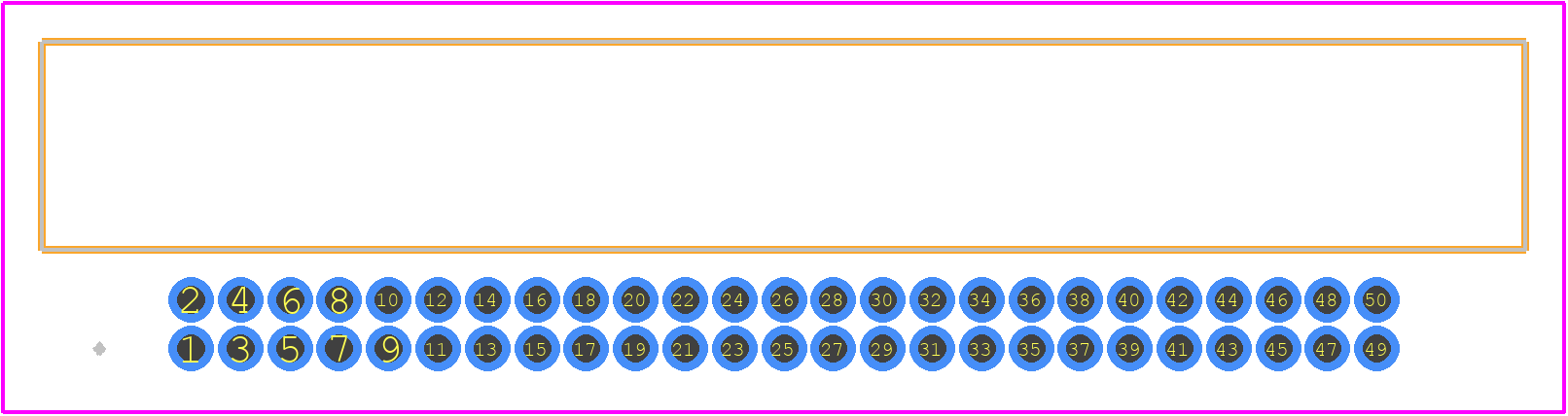

SHF-125-01-L-D-RA - SAMTEC PCB footprint - Other - Other - SHF-125-01-L-D-RA-1
click to zoom
3D Models
SHF-125-01-L-D-RA - SAMTEC - 3D model - Other - SHF-125-01-L-D-RA-1
click to zoom

SHF-125-01-L-D-RA Details

  • Manufacturer Part Number:

    SHF-125-01-L-D-RA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    3 Weeks, 1 Day

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.15

  • Additional Feature:

    SHROUDED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

SHF-125-01-L-D-RA Frequently Asked Questions (FAQs)

  • The recommended mating sequence for SHF-125-01-L-D-RA is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the SHF-125-01-L-D-RA is designed to withstand high-vibration environments. Samtec's SHF series connectors are tested to meet the requirements of IEC 61373 Cat. II, which includes vibration testing.
  • The maximum operating temperature for the SHF-125-01-L-D-RA is 125°C. However, it's recommended to derate the current carrying capacity of the connector at higher temperatures to ensure reliable operation.
  • While the SHF-125-01-L-D-RA is designed for 1.57mm PCB thickness, Samtec offers variations of this connector that can accommodate different PCB thicknesses. Consult with Samtec's technical support or refer to their website for more information.
  • The typical lead time for the SHF-125-01-L-D-RA can vary depending on the quantity, region, and availability. However, Samtec typically quotes a lead time of 6-8 weeks for standard products. It's recommended to check with authorized distributors or Samtec's customer service for the most up-to-date lead time information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHF-125-01-L-D-RA Overview

Use the download button to access the SHF-125-01-L-D-RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHF-1, or try a keyword search, such as Headers and Edge Type Connectors
