SHT30-ARP-B10KS - Sensirion

Description: Humidity/Temperature Sensor Analog Automotive 8-Pin TDFN EP

Download SHT30-ARP-B10KS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

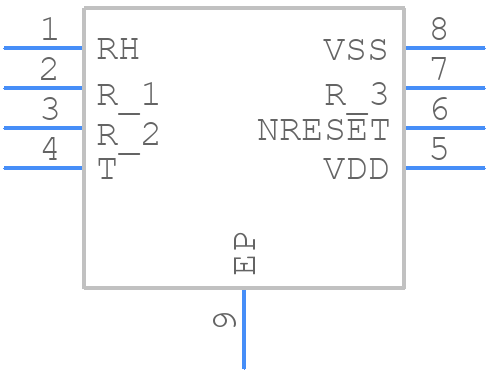

SHT30-ARP-B10KS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT30-ARP-B10KS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - SHT3x-ARP_2021
click to zoom
3D Models
SHT30-ARP-B10KS - Sensirion - 3D model - Small Outline No-lead - SHT3x-ARP_2021
click to zoom

SHT30-ARP-B10KS Details

  • Manufacturer Part Number:

    SHT30-ARP-B10KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Additional Feature:

    AEC-Q100

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SHT30-ARP-B10KS Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the SHT30-ARP-B10KS is 2.4 V to 5.5 V, with a typical voltage of 3.3 V.
  • The SHT30-ARP-B10KS uses a 4-pin connector with a standard I2C interface. Connect VCC to your microcontroller's power supply, GND to ground, SCL to your microcontroller's I2C clock pin, and SDA to your microcontroller's I2C data pin.
  • The SHT30-ARP-B10KS has a typical accuracy of ±1.5% RH (relative humidity) and ±0.2°C for temperature measurements.
  • The SHT30-ARP-B10KS has a maximum measurement frequency of 2 Hz (2 measurements per second) for both temperature and humidity.
  • The SHT30-ARP-B10KS is designed for indoor use and is not recommended for outdoor use due to its limited environmental operating range (-40°C to 85°C) and potential sensitivity to direct sunlight and moisture.
