SHT30-ARP-B2.5KS - Sensirion

Description: Humidity/Temperature Sensor Analog 8-Pin TDFN EP T/R

Download SHT30-ARP-B2.5KS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

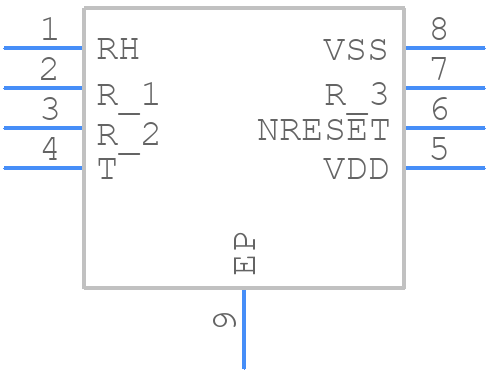

SHT30-ARP-B2.5KS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT30-ARP-B2.5KS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-DFN (2.5x2.5) -1
click to zoom
3D Models
SHT30-ARP-B2.5KS - Sensirion - 3D model - Small Outline No-lead - 8-DFN (2.5x2.5) -1
click to zoom

SHT30-ARP-B2.5KS Details

  • Manufacturer Part Number:

    SHT30-ARP-B2.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Additional Feature:

    AEC-Q100

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

SHT30-ARP-B2.5KS Frequently Asked Questions (FAQs)

  • The recommended operating voltage for the SHT30-ARP-B2.5KS is 2.4V to 5.5V.
  • The SHT30-ARP-B2.5KS has a relative humidity accuracy of ±2% RH (at 25°C and 60% RH) and a temperature accuracy of ±0.2°C (at 25°C).
  • The response time of the SHT30-ARP-B2.5KS is typically 4-6 seconds for humidity and 1-2 seconds for temperature.
  • The SHT30-ARP-B2.5KS is designed for indoor use, but it can be used outdoors if properly protected from environmental factors such as rain, dust, and extreme temperatures.
  • Yes, the SHT30-ARP-B2.5KS can operate in high-humidity environments, but it's recommended to take precautions to prevent condensation and ensure proper sealing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHT30-ARP-B2.5KS Overview

Use the download button to access the SHT30-ARP-B2.5KS schematic symbol, PCB footprint, and 3D model.
