SHT30-DIS-B10KS - Sensirion

Description: Humidity/Temperature Sensor Digital Serial (I2C) Automotive 8-Pin TDFN EP T/R

Download SHT30-DIS-B10KS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

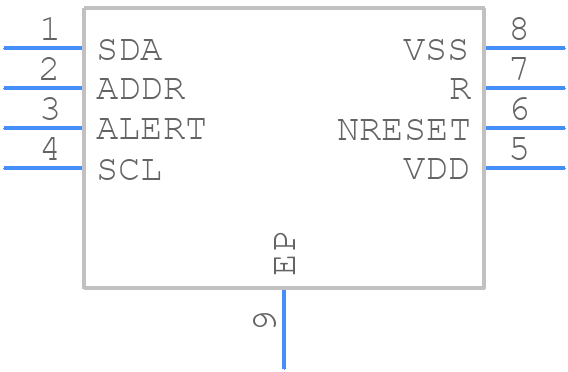

SHT30-DIS-B10KS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT30-DIS-B10KS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - SHT3x-DIS*
click to zoom
3D Models
SHT30-DIS-B10KS - Sensirion - 3D model - Small Outline No-lead - SHT3x-DIS*
click to zoom

SHT30-DIS-B10KS Details

  • Manufacturer Part Number:

    SHT30-DIS-B10KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SHT30-DIS-B10KS Frequently Asked Questions (FAQs)

  • Sensirion recommends a reflow soldering profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a total process time of 3-5 minutes.
  • Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • Store the device in a dry, cool place with a relative humidity below 60% and a temperature range of -20°C to 70°C.
  • Yes, the SHT30-DIS-B10KS is suitable for outdoor and high-humidity applications, but ensure proper sealing and protection against water and condensation.
  • The SHT30-DIS-B10KS is calibrated during manufacturing, and no additional calibration is required. However, you can perform a system-level calibration if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHT30-DIS-B10KS Overview

Use the download button to access the SHT30-DIS-B10KS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHT30, or try a keyword search, such as Other Sensors/Transducers
