SHT30-DIS-B2.5KS - Sensirion

Description: Humidity/Temperature Sensor Digital Serial (I2C) 8-Pin DFN EP T/R

Download SHT30-DIS-B2.5KS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

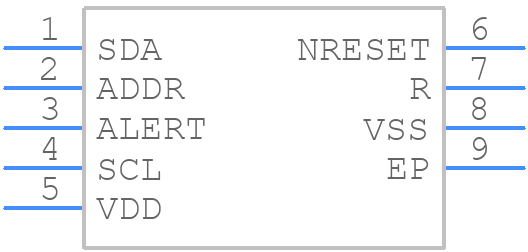

Symbol
SHT30-DIS-B2.5KS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT30-DIS-B2.5KS - Sensirion PCB footprint - Other - Other - SHT30-DIS-B2.5KS-1
click to zoom
3D Models
SHT30-DIS-B2.5KS - Sensirion - 3D model - Other - SHT30-DIS-B2.5KS-1
click to zoom

SHT30-DIS-B2.5KS Details

  • Manufacturer Part Number:

    SHT30-DIS-B2.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SHT30-DIS-B2.5KS Frequently Asked Questions (FAQs)

  • Sensirion recommends a reflow soldering profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a total process time of 3-5 minutes.
  • Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • Store the device in a dry, cool place (20-30°C, 40-60% RH) in its original packaging or a similar environment to prevent moisture absorption.
  • Yes, but ensure proper sealing and protection of the device from direct exposure to water, condensation, or high humidity to prevent damage or degradation.
  • The SHT30-DIS-B2.5KS is calibrated during manufacturing, and no additional calibration is required. However, you can perform a system-level calibration if necessary, following Sensirion's guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHT30-DIS-B2.5KS Overview

Use the download button to access the SHT30-DIS-B2.5KS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHT30, or try a keyword search, such as Other Sensors/Transducers
