SHT30-DIS-P2.5KS - Sensirion

Description: SENSIRION - SHT30-DIS-P2.5KS - HUMIDITY/TEMP SENSOR, DIGITAL, DFN-8

Download SHT30-DIS-P2.5KS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

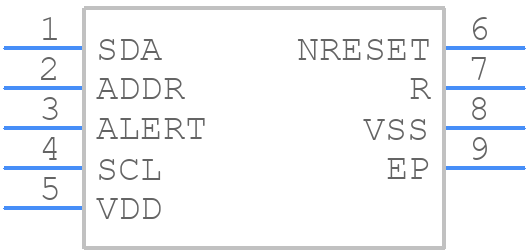

SHT30-DIS-P2.5KS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT30-DIS-P2.5KS - Sensirion PCB footprint - Other - Other - SHT30-DIS-P2.5KS-3
click to zoom
3D Models
SHT30-DIS-P2.5KS - Sensirion - 3D model - Other - SHT30-DIS-P2.5KS-3
click to zoom

SHT30-DIS-P2.5KS Details

  • Manufacturer Part Number:

    SHT30-DIS-P2.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Country Of Origin:

    Switzerland

  • Manufacturer:

    Sensirion

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL OUTPUT

  • Package Equivalence Code:

    SOLCC8,.1,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

SHT30-DIS-P2.5KS Frequently Asked Questions (FAQs)

  • The recommended operating voltage for the SHT30-DIS-P2.5KS is 2.15V to 5.5V.
  • The SHT30-DIS-P2.5KS uses a 4-pin interface (VCC, GND, SCL, SDA) and communicates via I2C protocol. Connect VCC to a power source, GND to ground, SCL to the microcontroller's SCL pin, and SDA to the microcontroller's SDA pin.
  • The SHT30-DIS-P2.5KS has a temperature accuracy of ±0.2°C (typical) and ±0.3°C (max) over the range of -40°C to 125°C.
  • The SHT30-DIS-P2.5KS has a maximum measurement frequency of 2 Hz (2 measurements per second). However, it's recommended to limit the measurement frequency to 1 Hz or less to ensure accurate and reliable readings.
  • The SHT30-DIS-P2.5KS is designed for indoor use and is not recommended for outdoor use due to its limited environmental protection (IP20 rating). For outdoor use, consider using a weather-resistant version of the sensor or a different product altogether.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHT30-DIS-P2.5KS Overview

Use the download button to access the SHT30-DIS-P2.5KS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHT30, or try a keyword search, such as Other Sensors/Transducers
