SHT30A-DIS-B2.5KS - Sensirion

Description: Humidity/Temperature Sensor Digital Serial (I2C) Automotive 8-Pin DFN EP T/R

Download SHT30A-DIS-B2.5KS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

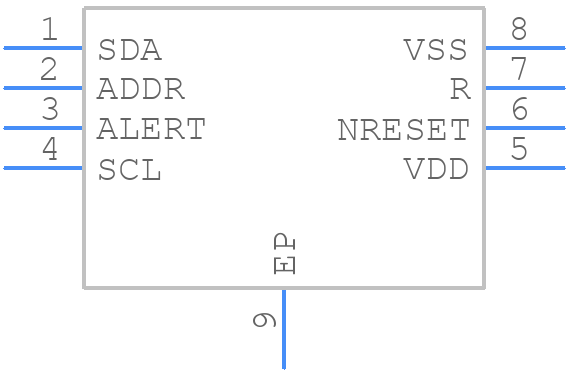

Symbol
SHT30A-DIS-B2.5KS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT30A-DIS-B2.5KS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pin DFN
click to zoom
3D Models
SHT30A-DIS-B2.5KS - Sensirion - 3D model - Small Outline No-lead - 8-Pin DFN
click to zoom

SHT30A-DIS-B2.5KS Details

  • Manufacturer Part Number:

    SHT30A-DIS-B2.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SHT30A-DIS-B2.5KS Frequently Asked Questions (FAQs)

  • The recommended operating voltage for the SHT30A-DIS-B2.5KS is 2.4 V to 5.5 V.
  • The temperature measurement accuracy of the SHT30A-DIS-B2.5KS is ±0.2°C (typical) and ±0.3°C (max) over the range of -40°C to 125°C.
  • The humidity measurement range of the SHT30A-DIS-B2.5KS is 0% to 100% relative humidity (RH).
  • The SHT30A-DIS-B2.5KS communicates via a digital I²C interface, with a maximum clock frequency of 400 kHz.
  • The SHT30A-DIS-B2.5KS is not suitable for outdoor use without proper protection, as it is not designed to withstand harsh environmental conditions such as direct sunlight, rain, or extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHT30A-DIS-B2.5KS Overview

Use the download button to access the SHT30A-DIS-B2.5KS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHT30, or try a keyword search, such as Other Sensors/Transducers
