SHT31-ARP-B2.5kS - Sensirion

Description: Board Mount Humidity Sensors +/- 2%RH 14 bit Resolution

Download SHT31-ARP-B2.5kS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

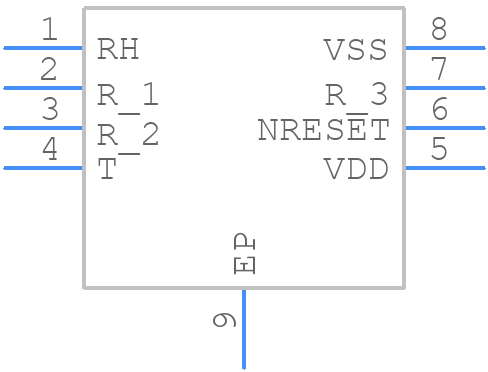

SHT31-ARP-B2.5kS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT31-ARP-B2.5kS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-DFN (2.5x2.5)
click to zoom
3D Models
SHT31-ARP-B2.5kS - Sensirion - 3D model - Small Outline No-lead - 8-DFN (2.5x2.5)
click to zoom

SHT31-ARP-B2.5kS Details

  • Manufacturer Part Number:

    SHT31-ARP-B2.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Additional Feature:

    AEC-Q100

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SHT31-ARP-B2.5kS Frequently Asked Questions (FAQs)

  • The recommended operating voltage for the SHT31-ARP-B2.5KS is 2.4 V to 5.5 V.
  • The SHT31-ARP-B2.5KS has a temperature accuracy of ±0.2°C (±0.36°F) in the range of 0°C to 90°C (32°F to 194°F).
  • The response time of the SHT31-ARP-B2.5KS is typically 5 seconds for temperature and 8 seconds for humidity.
  • No, the SHT31-ARP-B2.5KS is not suitable for outdoor use as it is not designed to withstand harsh environmental conditions. It is recommended for indoor use only.
  • Yes, the SHT31-ARP-B2.5KS can be used in high-humidity environments, but it is recommended to take precautions to prevent condensation on the sensor.
