SHT31-DIS-B10KS - Sensirion

Description: Humidity/Temperature Sensor Digital Serial (I2C) 8-Pin DFN EP

Download SHT31-DIS-B10KS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

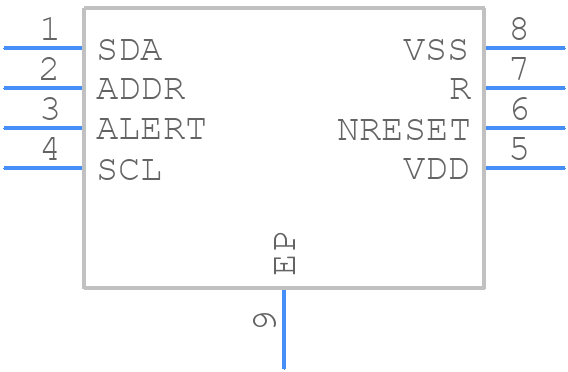

SHT31-DIS-B10KS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT31-DIS-B10KS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - SHT31-DIS-B10KS-
click to zoom
3D Models
SHT31-DIS-B10KS - Sensirion - 3D model - Small Outline No-lead - SHT31-DIS-B10KS-
click to zoom

SHT31-DIS-B10KS Details

  • Manufacturer Part Number:

    SHT31-DIS-B10KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SHT31-DIS-B10KS Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the SHT31-DIS-B10KS is 2.15 V to 5.5 V.
  • The SHT31-DIS-B10KS uses a 4-wire interface (VCC, GND, SCL, SDA) and can be connected to a microcontroller using I2C protocol.
  • The SHT31-DIS-B10KS has a temperature accuracy of ±0.2°C (typical) and ±0.3°C (max) in the range of -40°C to 125°C.
  • The SHT31-DIS-B10KS has a maximum measurement frequency of 2 Hz (2 measurements per second) for both temperature and humidity.
  • The SHT31-DIS-B10KS is designed for indoor use, but it can be used outdoors with proper protection from environmental factors such as rain, dust, and extreme temperatures.
