SHT31-DIS-F2.5kS - Sensirion

Description: Board Mount Humidity Sensors SHT3x Humidity and Temperature Sensor

Download SHT31-DIS-F2.5kS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

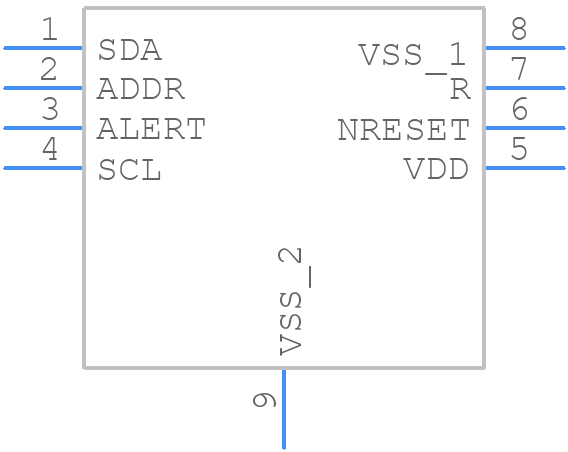

SHT31-DIS-F2.5kS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT31-DIS-F2.5kS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - SHT3x-DIS
click to zoom
3D Models
SHT31-DIS-F2.5kS - Sensirion - 3D model - Small Outline No-lead - SHT3x-DIS
click to zoom

SHT31-DIS-F2.5kS Details

  • Manufacturer Part Number:

    SHT31-DIS-F2.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Additional Feature:

    IP67

  • Body Breadth:

    2.5 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    2.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Package Body Material:

    SILICONE

  • Package Equivalence Code:

    SOLCC8,.1

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Surface Mount:

    YES

SHT31-DIS-F2.5kS Frequently Asked Questions (FAQs)

  • The recommended storage condition for the SHT31-DIS-F2.5KS is in a dry, cool place with a relative humidity below 60% and a temperature range of -40°C to 125°C.
  • Handle the SHT31-DIS-F2.5KS by the edges to prevent damage to the sensor and electrical connections. Avoid touching the sensor or electrical connections with bare hands, as the oils from skin can damage the device.
  • The recommended soldering profile for the SHT31-DIS-F2.5KS is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
  • The SHT31-DIS-F2.5KS is calibrated by Sensirion during the manufacturing process. No additional calibration is required. However, it is recommended to perform a system-level calibration to ensure accurate measurements in the specific application.
  • The recommended wiring for the SHT31-DIS-F2.5KS is a shielded cable with a maximum length of 1 meter. The cable should be connected to a microcontroller or other digital interface using a 4-wire connection (VCC, GND, SCL, SDA).
