SHT31-DIS-P2.5KS - Sensirion

Description: Humidity, Temperature 0 ~ 100% RH I²C ±2% RH 8 s Surface Mount

Download SHT31-DIS-P2.5KS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

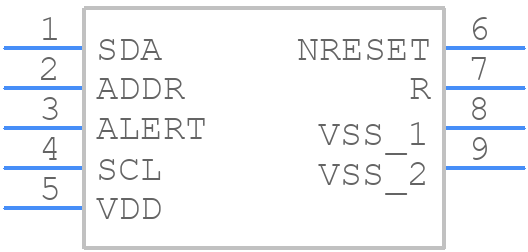

SHT31-DIS-P2.5KS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT31-DIS-P2.5KS - Sensirion PCB footprint - Other - Other - SHT31-DIS-P2.5KS-2
click to zoom
3D Models
SHT31-DIS-P2.5KS - Sensirion - 3D model - Other - SHT31-DIS-P2.5KS-2
click to zoom

SHT31-DIS-P2.5KS Details

  • Manufacturer Part Number:

    SHT31-DIS-P2.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Country Of Origin:

    Switzerland

  • Manufacturer:

    Sensirion

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL OUTPUT

  • Package Equivalence Code:

    SOLCC8,.1,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

SHT31-DIS-P2.5KS Frequently Asked Questions (FAQs)

  • The recommended operating voltage for the SHT31-DIS-P2.5KS is 2.15V to 5.5V.
  • The SHT31-DIS-P2.5KS has a temperature accuracy of ±0.2°C (typical) and ±0.3°C (max) over the range of -40°C to 125°C.
  • The response time of the SHT31-DIS-P2.5KS is typically 5 seconds for temperature and 8 seconds for humidity.
  • The SHT31-DIS-P2.5KS is designed for indoor use, but it can be used outdoors if properly protected from environmental factors such as rain, snow, and direct sunlight.
  • The SHT31-DIS-P2.5KS is calibrated during manufacturing and does not require additional calibration. However, it is recommended to perform a system calibration to ensure optimal performance in the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHT31-DIS-P2.5KS Overview

Use the download button to access the SHT31-DIS-P2.5KS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHT31, or try a keyword search, such as Other Sensors/Transducers
