SHT31A-DIS-B10kS - Sensirion

Description: Board Mount Humidity Sensors RH/ T Sensor, Automotive certified

Download SHT31A-DIS-B10kS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

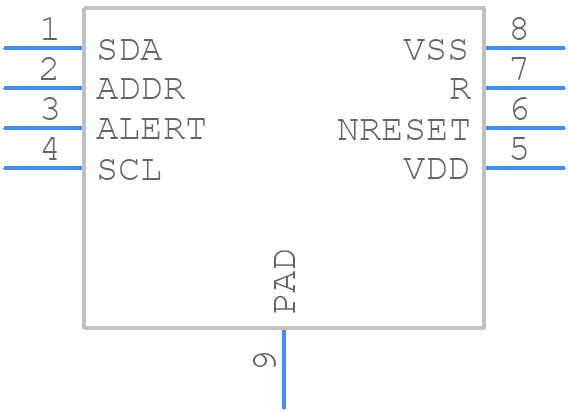

SHT31A-DIS-B10kS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT31A-DIS-B10kS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - SHT3xA-DIS_DFN-8
click to zoom
3D Models
SHT31A-DIS-B10kS - Sensirion - 3D model - Small Outline No-lead - SHT3xA-DIS_DFN-8
click to zoom

SHT31A-DIS-B10kS Details

  • Manufacturer Part Number:

    SHT31A-DIS-B10KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SHT31A-DIS-B10kS Frequently Asked Questions (FAQs)

  • Sensirion recommends a reflow soldering profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a cooling rate of 4°C/s or less.
  • Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • The recommended operating voltage range is 2.4 V to 5.5 V, with a typical operating voltage of 3.3 V.
  • The SHT31A-DIS-B10KS is calibrated by Sensirion during manufacturing, and no additional calibration is required. However, you can perform a system-level calibration to compensate for any system-specific errors.
  • The response time of the SHT31A-DIS-B10KS is typically 4-6 seconds for temperature and 10-15 seconds for humidity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHT31A-DIS-B10kS Overview

Use the download button to access the SHT31A-DIS-B10kS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHT31, or try a keyword search, such as Other Sensors/Transducers
