SHT31A-DIS-B2.5kS - Sensirion

Description: Board Mount Humidity Sensors RH/ T Sensor, Automotive certified

Download SHT31A-DIS-B2.5kS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

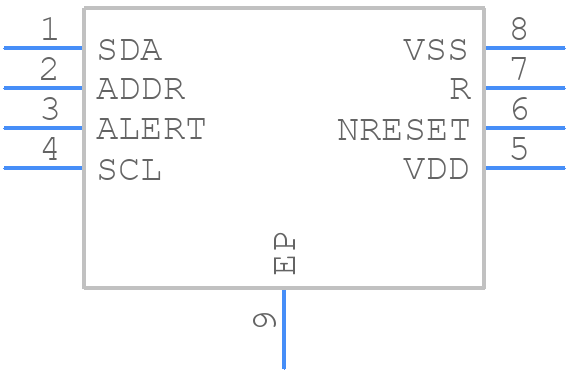

SHT31A-DIS-B2.5kS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT31A-DIS-B2.5kS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - SHT3xA-DIS sensor package
click to zoom
3D Models
SHT31A-DIS-B2.5kS - Sensirion - 3D model - Small Outline No-lead - SHT3xA-DIS sensor package
click to zoom

SHT31A-DIS-B2.5kS Details

  • Manufacturer Part Number:

    SHT31A-DIS-B2.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

SHT31A-DIS-B2.5kS Frequently Asked Questions (FAQs)

  • The recommended operating voltage for the SHT31A-DIS-B2.5KS is 2.4 V to 5.5 V.
  • The temperature measurement accuracy of the SHT31A-DIS-B2.5KS is ±0.3°C in the range of -20°C to 60°C.
  • The humidity measurement range of the SHT31A-DIS-B2.5KS is 0% to 100% relative humidity.
  • The SHT31A-DIS-B2.5KS communicates via I2C, so you need to connect the SCL and SDA pins to your microcontroller's I2C pins.
  • The power consumption of the SHT31A-DIS-B2.5KS is typically 1.5 mA during measurement and 0.5 μA in sleep mode.
