SHT35-DIS-B2.5KS - Sensirion

Description: SENSOR HUMI/TEMP 5V I2C 1.5% SMD

Download SHT35-DIS-B2.5KS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

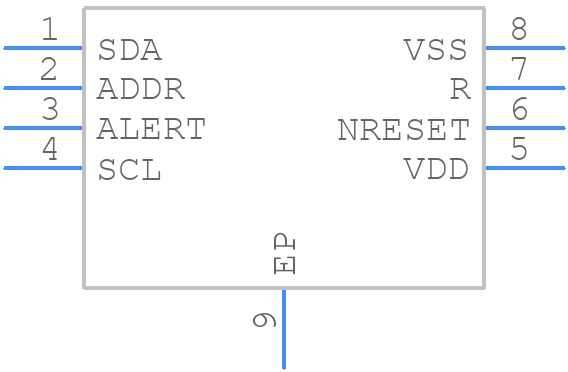

SHT35-DIS-B2.5KS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT35-DIS-B2.5KS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-DFN (2.5x2.5)
click to zoom
3D Models
SHT35-DIS-B2.5KS - Sensirion - 3D model - Small Outline No-lead - 8-DFN (2.5x2.5)
click to zoom

SHT35-DIS-B2.5KS Details

  • Manufacturer Part Number:

    SHT35-DIS-B2.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SHT35-DIS-B2.5KS Frequently Asked Questions (FAQs)

  • Sensirion recommends a reflow soldering profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a total process time of 3-5 minutes.
  • Store the SHT35-DIS-B2.5KS in a dry, cool place, away from direct sunlight and moisture. Use a desiccant or silica gel to maintain a relative humidity below 50%.
  • Sensirion provides a recommended PCB layout and land pattern in their application notes. The layout should ensure good thermal conductivity and minimize thermal gradients.
  • The SHT35-DIS-B2.5KS is calibrated during manufacturing. However, if recalibration is necessary, Sensirion provides a calibration procedure in their application notes, which involves exposing the sensor to known humidity and temperature conditions.
  • The maximum cable length for the I2C interface is 10 meters, but it's recommended to keep the cable length as short as possible to minimize signal degradation and noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHT35-DIS-B2.5KS Overview

Use the download button to access the SHT35-DIS-B2.5KS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHT35, or try a keyword search, such as Other Sensors/Transducers
