SHT35-DIS-F2.5kS - Sensirion

Description: Board Mount Humidity Sensors SHT3x Humidity and Temperature Sensor

Download SHT35-DIS-F2.5kS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

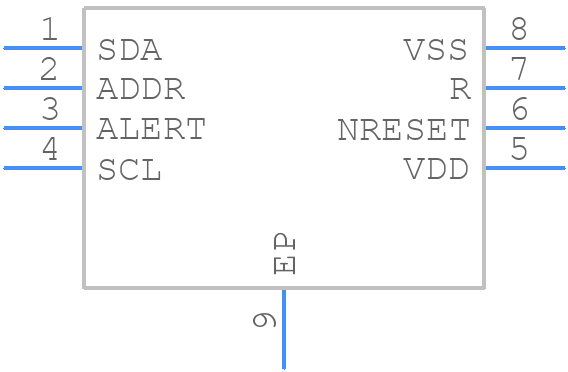

SHT35-DIS-F2.5kS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT35-DIS-F2.5kS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-8_1
click to zoom
3D Models
SHT35-DIS-F2.5kS - Sensirion - 3D model - Small Outline No-lead - DFN-8_1
click to zoom

SHT35-DIS-F2.5kS Details

  • Manufacturer Part Number:

    SHT35-DIS-F2.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Additional Feature:

    IP67

  • Body Breadth:

    2.5 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    2.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Package Body Material:

    SILICONE

  • Package Equivalence Code:

    SOLCC8,.1

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Surface Mount:

    YES

SHT35-DIS-F2.5kS Frequently Asked Questions (FAQs)

  • The recommended storage condition for the SHT35-DIS-F2.5KS is in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -40°C to 125°C.
  • To prevent damage during assembly, handle the SHT35-DIS-F2.5KS by the package body only, avoiding touching the sensor elements or electrical contacts. Use an anti-static wrist strap or mat to prevent electrostatic discharge.
  • The recommended soldering profile for the SHT35-DIS-F2.5KS is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
  • The SHT35-DIS-F2.5KS sensor should be cleaned with a soft brush or a lint-free cloth to remove any debris or contaminants. Avoid using chemicals, solvents, or ultrasonic cleaning methods, as they may damage the sensor.
  • The recommended humidity range for calibration and use of the SHT35-DIS-F2.5KS is 5% to 95% relative humidity (RH), with an accuracy of ±1.5% RH.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHT35-DIS-F2.5kS Overview

Use the download button to access the SHT35-DIS-F2.5kS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHT35, or try a keyword search, such as Other Sensors/Transducers
