SHT35A-DIS-B2.5kS - Sensirion

Description: Board Mount Humidity Sensors RH/ T Sensor, Automotive certified

Download SHT35A-DIS-B2.5kS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

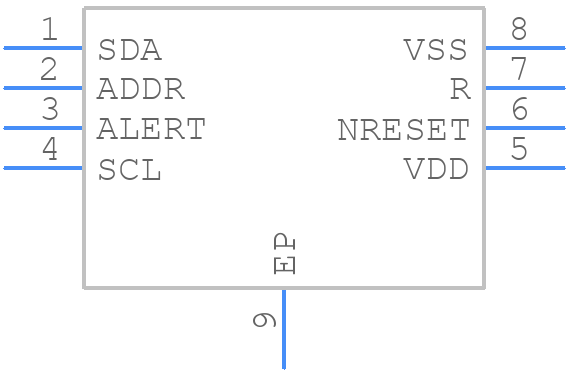

SHT35A-DIS-B2.5kS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT35A-DIS-B2.5kS - Sensirion PCB footprint - Small Outline No-lead - Small Outline No-lead - SHT35A-DIS-B2.5kS
click to zoom
3D Models
SHT35A-DIS-B2.5kS - Sensirion - 3D model - Small Outline No-lead - SHT35A-DIS-B2.5kS
click to zoom

SHT35A-DIS-B2.5kS Details

  • Manufacturer Part Number:

    SHT35A-DIS-B2.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SHT35A-DIS-B2.5kS Frequently Asked Questions (FAQs)

  • The recommended operating voltage for the SHT35A-DIS-B2.5KS is 2.4 V to 5.5 V, with a typical voltage of 3.3 V.
  • The SHT35A-DIS-B2.5KS uses a 4-pin interface (VCC, GND, SCL, SDA) and communicates via I2C protocol. Connect VCC to your microcontroller's power supply, GND to ground, SCL to your microcontroller's clock pin, and SDA to your microcontroller's data pin.
  • The SHT35A-DIS-B2.5KS has a typical temperature accuracy of ±1.5°C from -40°C to 125°C, and ±2.5°C from -40°C to 150°C.
  • The SHT35A-DIS-B2.5KS has a maximum measurement frequency of 1 Hz, but it's recommended to read data at a frequency of 0.1 Hz to 0.5 Hz to avoid overheating and ensure accurate measurements.
  • The SHT35A-DIS-B2.5KS is designed for indoor use, but it can be used outdoors if properly protected from environmental factors such as rain, snow, and direct sunlight. It's recommended to use a protective enclosure or coating to ensure reliable operation.
