SI-46014-F - BelFuse

Description: Modular Connector - RJ45 Jack - 1 Port - 10/100 Base-T, AutoMDIX - 4 Cores/Jack - Yellow, Green LED - Solder Termination - Ver ...

Download SI-46014-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

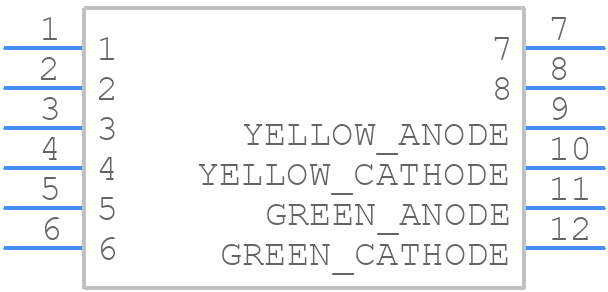

SI-46014-F - BelFuse - PCB symbol
click to zoom
PCB Footprints

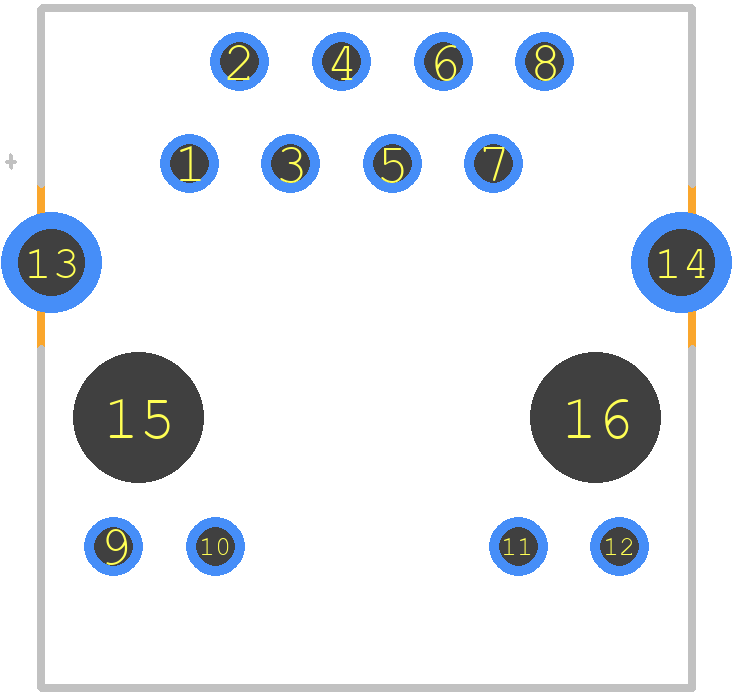

SI-46014-F - BelFuse PCB footprint - Other - Other - SI-46014-F-2
click to zoom
3D Models
SI-46014-F - BelFuse - 3D model - Other - SI-46014-F-2
click to zoom

SI-46014-F Details

  • Manufacturer Part Number:

    SI-46014-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Bel Fuse

  • YTEOL:

    8

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.64 inch

  • Body Depth:

    0.67 inch

  • Body Length:

    0.67 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    3

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    MIXED

  • Polarization Key:

    POLARIZED HOUSING

  • Shell Finish:

    NICKEL/TIN

  • Shell Material:

    COPPER ALLOY

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

SI-46014-F Frequently Asked Questions (FAQs)

  • Bel Fuse recommends a specific land pattern and PCB layout to ensure optimal performance and thermal management. It's essential to follow the recommended layout to minimize thermal resistance and ensure reliable operation.
  • The SI-46014-F is designed to provide excellent high-frequency noise attenuation and EMI filtering. However, it's crucial to follow proper PCB design and layout practices to minimize noise coupling and ensure effective EMI filtering.
  • While the datasheet specifies an operating temperature range, it's essential to note that the SI-46014-F can operate safely up to 125°C, but derating may be necessary for high-temperature applications.
  • Yes, the SI-46014-F is designed to meet the requirements of high-reliability and safety-critical applications. However, it's essential to follow Bel Fuse's guidelines and recommendations for these specific applications.
  • To prevent damage and ensure reliability, it's crucial to follow proper storage and handling procedures, such as storing the components in a dry, cool place, and handling them with anti-static precautions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI-46014-F Overview

Use the download button to access the SI-46014-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI-46, or try a keyword search, such as Telecom and Datacom Connectors
