Bel Fuse recommends a PCB layout with a solid ground plane and a thermal pad connected to the ground plane to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended for the PCB. Additionally, a thermal interface material (TIM) can be used to improve thermal conductivity between the device and the heat sink.
Bel Fuse recommends using a soldering iron with a temperature range of 250°C to 260°C and a soldering time of 3-5 seconds. The device should be soldered using a no-clean or water-soluble flux. It's essential to follow the recommended soldering profile and avoid overheating the device to prevent damage.
The maximum operating temperature range for the SI-46020-F is -40°C to 125°C. Operating the device outside this range can affect its performance, reliability, and lifespan. High temperatures can increase the device's thermal resistance, reducing its power handling capability, while low temperatures can increase its electrical resistance, affecting its efficiency.
The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output voltage, and ripple current. Bel Fuse recommends using low-ESR capacitors with a minimum capacitance value of 10 μF for the input and 22 μF for the output. The recommended capacitor values can be found in the application notes and design guides provided by Bel Fuse.
Bel Fuse recommends using a variety of test and measurement procedures, including input voltage, output voltage, and current measurements, as well as efficiency and power factor measurements. Additionally, engineers should perform thermal measurements, such as temperature rise and thermal resistance, to ensure the device is operating within its specified limits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI-46020-F Overview

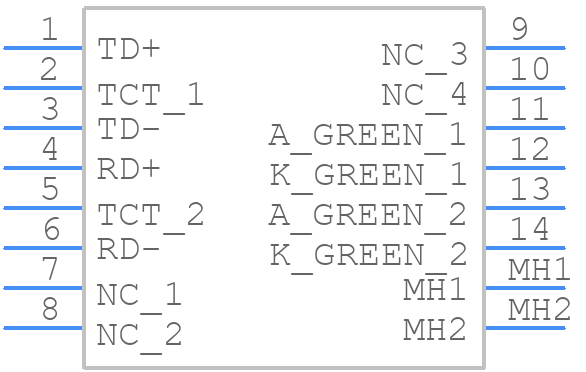

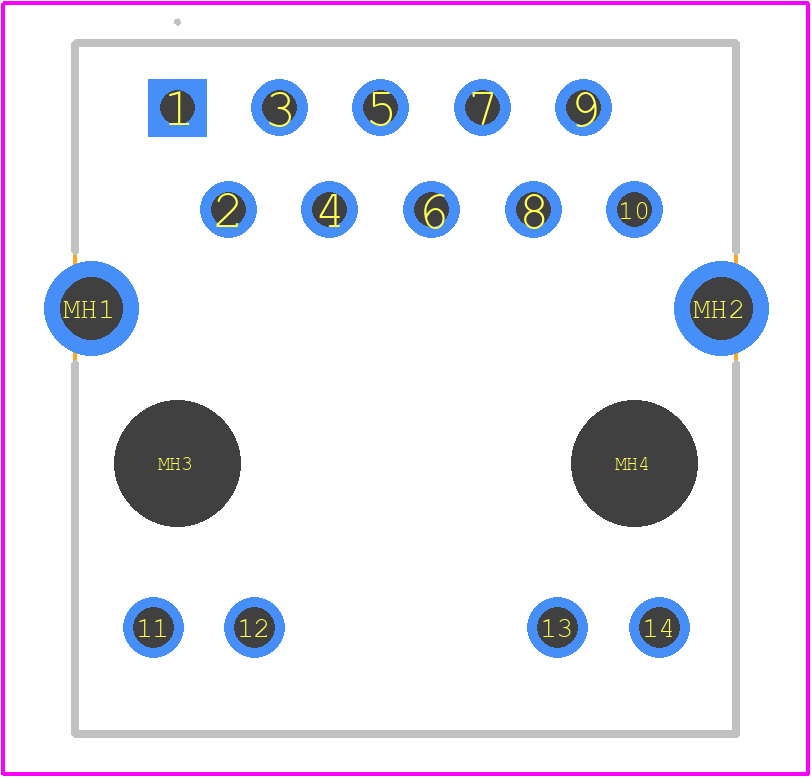

Use the download button to access the SI-46020-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI-46,
or try a keyword search, such as Telecom and Datacom Connectors
