SI-50170-F footprint, schematic symbol and 3D model by Bel Magnetic Solutions

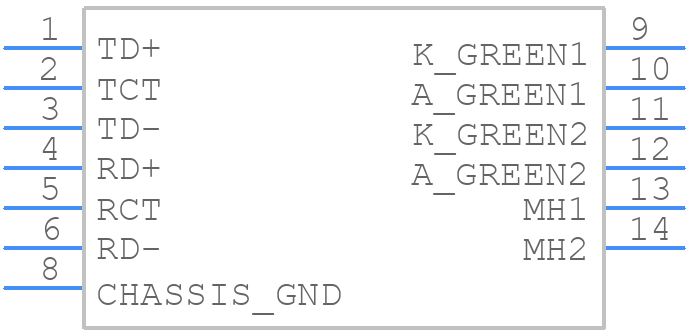

Symbol

click to zoom

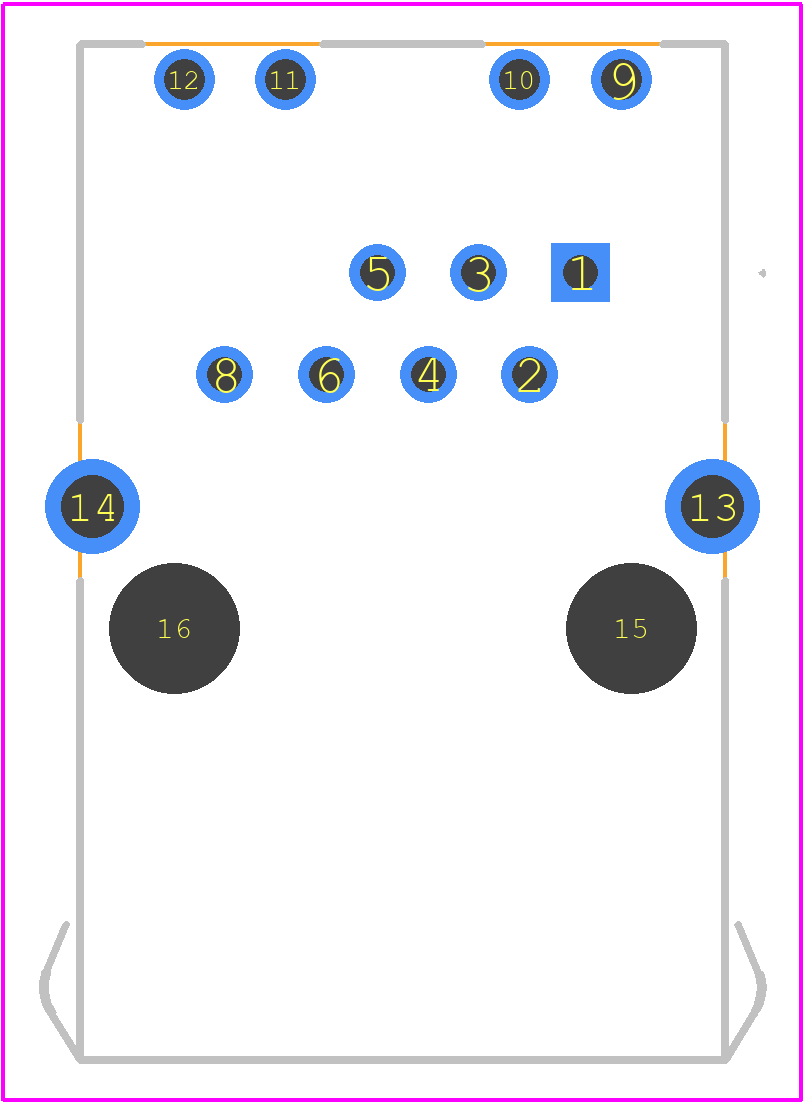

PCB Footprints

SI-50170-F - Bel Magnetic Solutions PCB footprint - Other - Other - SI-50170-F-1

click to zoom

3D Models

SI-50170-F - Bel Magnetic Solutions - 3D model - Other - SI-50170-F-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI-50170-F
Part Number SI-50170-F
Manufacturer Bel Magnetic Solutions
Pin Count 13
Part Category Connector
Package Category Other
Footprint Name Other - SI-50170-F-1
Released Date Apr 7, 2025
Last Modified Date Oct 15, 2025 4:54 PM UTC
Pinout / Pin List Click Here (Member Only)

SI-50170-F Details

Manufacturer Part Number:
SI-50170-F
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
13 Weeks
Manufacturer:
Bel Fuse
YTEOL:
7
Board Mounting Option:
SPLIT BOARD LOCK
Body Breadth:
0.599 inch
Body Depth:
1 inch
Body Length:
0.708 inch
Body/Shell Style:
JACK
Connector Type:
RJ CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
TELCOM, MODULAR
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
YES
IEC Conformance:
NO
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number Of PCB Rows:
3
Number of Ports:
1
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
PCB Contact Pattern:
MIXED
Polarization Key:
POLARIZED HOUSING
Shell Finish:
NICKEL/TIN
Shell Material:
COPPER ALLOY
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
8
UL Flammability Code:
94V-0

SI-50170-F Frequently Asked Questions (FAQs)

Bel Fuse recommends a specific land pattern and PCB layout to ensure optimal thermal performance and minimize thermal resistance. It's essential to follow the recommended layout to achieve the best results.
The SI-50170-F is designed to provide excellent high-frequency noise attenuation and EMI filtering. Its internal design and component selection help to minimize electromagnetic interference and ensure reliable operation in noisy environments.
The SI-50170-F is rated for operation from -40°C to 125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, the SI-50170-F is designed and manufactured to meet the stringent requirements of high-reliability applications, including aerospace and defense. It meets or exceeds relevant industry standards, such as MIL-PRF-38534.
The lead time and availability of the SI-50170-F may vary depending on the region, distributor, and quantity. It's recommended to check with authorized distributors or Bel Fuse directly for the most up-to-date information.

Trust Checks

Community Provided

System Verified

Community Approved

SI-50170-F Overview

Use the download button to access the SI-50170-F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SI-50, or try a keyword search, such as Telecom and Datacom Connectors

Parts related to SI-50170-F

Showing 0 results

Image	Part Number	Model
	SI-50170-G Bel Fuse Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack
	SI-50170 Bel Fuse Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking
For a full list of alternate parts for SI-50170-F, check out Findchips.com
