SI-52008-F footprint, schematic symbol and 3D model by BelFuse

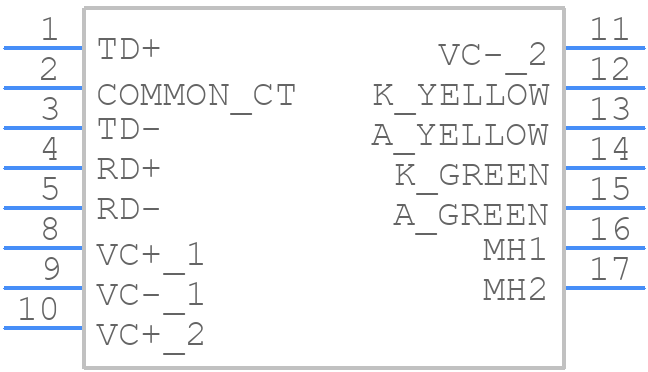

Symbol

click to zoom

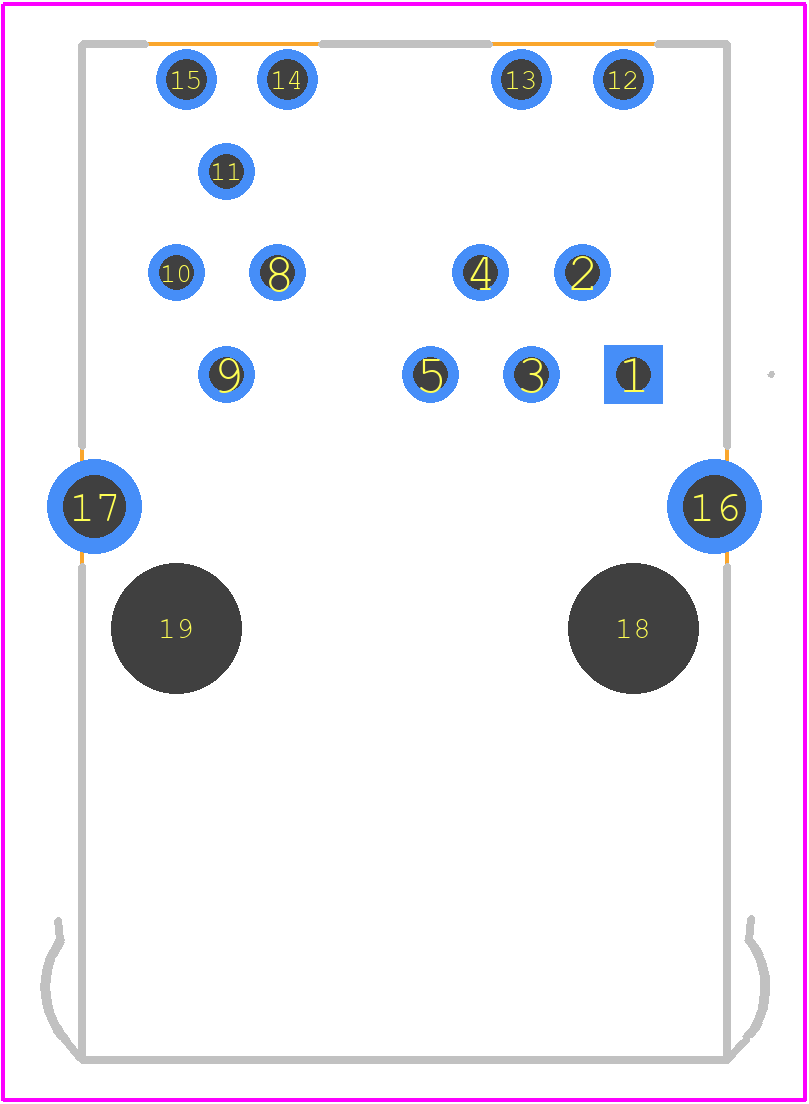

PCB Footprints

SI-52008-F - BelFuse PCB footprint - Other - Other - SI-52008-F-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI-52008-F
Part Number SI-52008-F
Manufacturer BelFuse
Pin Count 15
Part Category Connector
Package Category Other
Footprint Name Other - SI-52008-F-1
Released Date Jul 14, 2017
Last Modified Date Jan 15, 2025 4:16 PM UTC
Pinout / Pin List Click Here (Member Only)

SI-52008-F Details

Manufacturer Part Number:
SI-52008-F
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
13 Weeks
Manufacturer:
Bel Fuse
YTEOL:
8
Additional Feature:
SHIELDED
Board Mounting Option:
HOLE 0.125-0.128
Body Breadth:
0.55 inch
Body Depth:
1 inch
Body Length:
0.635 inch
Connector Type:
RJ CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
MODULAR RJ45
Empty Shell:
NO
Filter Feature:
YES
Insulator Material:
POLYETHYLENE
Mixed Contacts:
NO
Mounting Option 1:
MOUNTING FLANGE
Mounting Option 2:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number Of PCB Rows:
2
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
70 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
50u inch
Polarization Key:
POLARIZED HOUSING
Reference Standard:
UL
Shell Finish:
NICKEL/TIN
Shell Material:
COPPER ALLOY
Terminal Length:
0.125 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
8
UL Flammability Code:
94V-0

SI-52008-F Frequently Asked Questions (FAQs)

Bel Fuse recommends a specific land pattern and PCB layout to ensure optimal performance and thermal management. It's essential to follow the recommended layout to minimize thermal resistance and ensure reliable operation.
The SI-52008-F is designed to provide excellent high-frequency noise attenuation and EMI filtering. The device's internal architecture and component selection help to minimize electromagnetic interference and ensure reliable operation in noisy environments.
The SI-52008-F is rated for operation from -40°C to 125°C, making it suitable for a wide range of industrial and commercial applications. However, it's essential to consider derating and thermal management to ensure reliable operation at higher temperatures.
Yes, the SI-52008-F is designed and manufactured to meet the requirements of high-reliability and safety-critical applications. Bel Fuse provides additional documentation and support for customers requiring compliance with specific industry standards or regulations.
Lead times and minimum order quantities for the SI-52008-F may vary depending on the region, distribution channel, and customer requirements. It's recommended to contact Bel Fuse or an authorized distributor for the most up-to-date information and to discuss specific requirements.
