SI-60118-F footprint, schematic symbol and 3D model by BelFuse

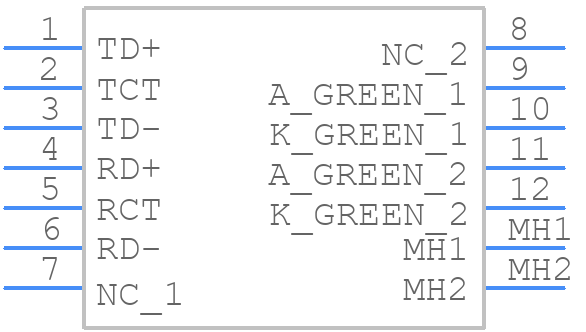

Symbol

click to zoom

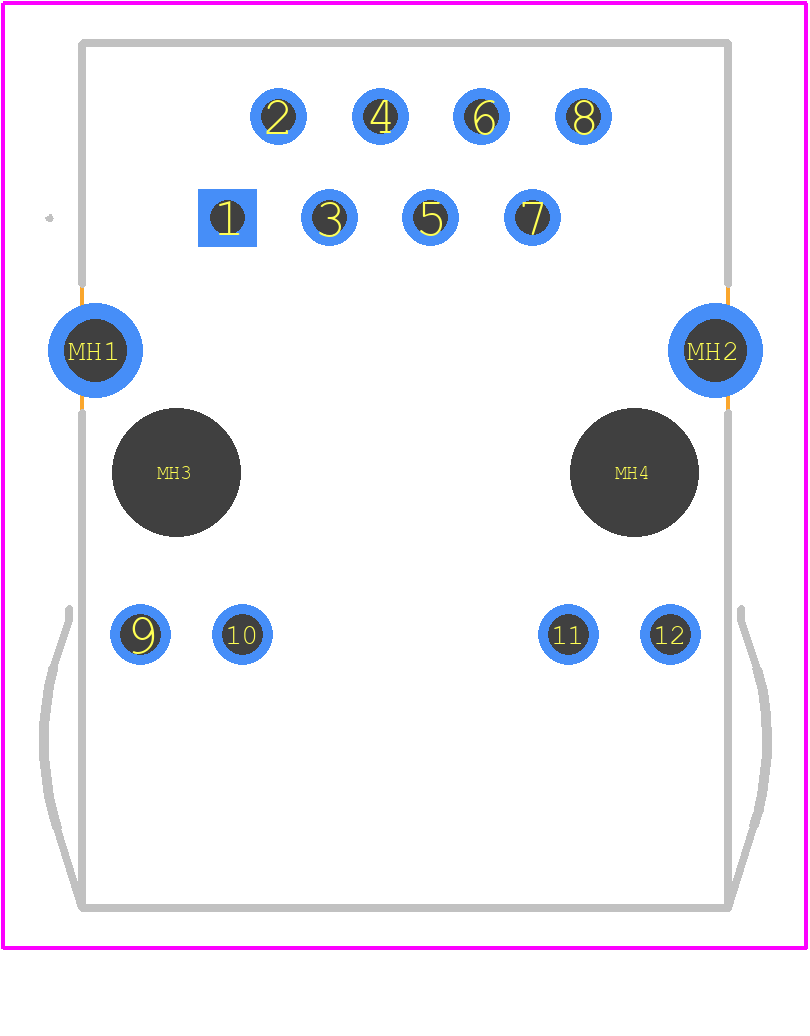

PCB Footprints

SI-60118-F - BelFuse PCB footprint - Other - Other - SI-60118-F-1

click to zoom

3D Models

SI-60118-F - BelFuse - 3D model - Other - SI-60118-F-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI-60118-F
Part Number SI-60118-F
Manufacturer BelFuse
Pin Count 14
Part Category Connector
Package Category Other
Footprint Name Other - SI-60118-F-1
Released Date Nov 27, 2017
Last Modified Date Nov 29, 2024 7:09 AM UTC
Pinout / Pin List Click Here (Member Only)

SI-60118-F Details

Manufacturer Part Number:
SI-60118-F
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
13 Weeks
Manufacturer:
Bel Fuse
YTEOL:
8
Board Mounting Option:
SPLIT BOARD LOCK
Body Breadth:
0.599 inch
Body Depth:
0.85 inch
Body Length:
0.708 inch
Body/Shell Style:
JACK
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
TELCOM, MODULAR
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
YES
IEC Conformance:
NO
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number Of PCB Rows:
3
Number of Ports:
1
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
PCB Contact Pattern:
MIXED
Polarization Key:
POLARIZED HOUSING
Shell Finish:
NICKEL/TIN
Shell Material:
COPPER ALLOY
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
8
UL Flammability Code:
94V-0

SI-60118-F Frequently Asked Questions (FAQs)

Bel Fuse provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
The SI-60118-F is designed to provide excellent high-frequency noise attenuation and EMI filtering. The device's internal architecture and component selection help to minimize electromagnetic interference and radio-frequency interference.
The SI-60118-F is rated for operation from -40°C to 85°C. However, it's essential to consider derating and thermal management to ensure reliable operation within the specified temperature range.
Yes, the SI-60118-F is designed to meet the requirements of high-reliability and safety-critical applications. However, it's essential to consult with Bel Fuse and conduct thorough testing and validation to ensure the device meets the specific application's requirements.
Lead times and availability may vary depending on the region, distributor, and quantity. It's recommended to check with authorized distributors or Bel Fuse directly for the most up-to-date information.

Trust Checks

Community Provided

System Verified

Community Approved

SI-60118-F Overview

Use the download button to access the SI-60118-F schematic symbol, PCB footprint, and 3D model.
