Skyworks provides a recommended PCB layout in their application note AN3018, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
The SI3018-F-FS requires a specific biasing scheme to achieve optimal linearity. Refer to the datasheet's biasing diagram and ensure that the voltage and current levels are within the recommended ranges. Additionally, consider using a voltage regulator and decoupling capacitors to minimize noise and ensure stable operation.
The SI3018-F-FS is rated for operation from -40°C to +85°C. However, it's essential to consider the device's thermal characteristics and ensure proper heat sinking and thermal management to prevent overheating and ensure reliable operation.
To troubleshoot oscillation or instability issues, start by verifying the PCB layout and ensuring that it follows the recommended guidelines. Check for proper biasing, decoupling, and grounding. Use a spectrum analyzer or oscilloscope to identify any unwanted signals or oscillations. Consult the datasheet and application notes for troubleshooting guides and consider seeking support from Skyworks' technical support team.
The SI3018-F-FS is a sensitive device that requires proper ESD protection and handling. Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensure that all equipment and tools are properly grounded. Avoid touching the device's pins or exposed internal components to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI3018-F-FS Overview

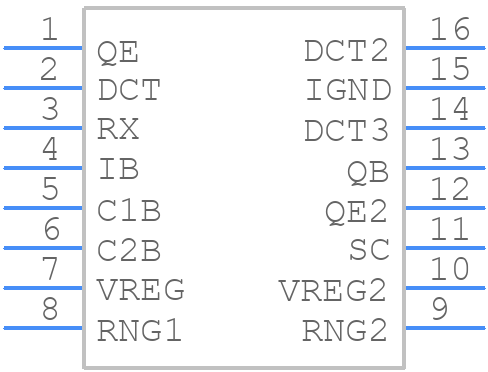

Use the download button to access the SI3018-F-FS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI301,
or try a keyword search, such as Modems
