The recommended PCB layout for the SI3019-F-FM involves using a 4-layer PCB with a solid ground plane, placing the device near the antenna, and using short, direct traces for the RF signals. Additionally, it's recommended to use a common mode filter and a pi-filter to reduce EMI and improve performance.
To optimize the antenna design for the SI3019-F-FM, it's recommended to use a 50-ohm impedance antenna with a resonant frequency of 2.4 GHz. The antenna should be placed at least 10 mm away from the module's edges and should be designed to minimize radiation in the direction of the module's sensitive components.
The SI3019-F-FM is rated for operation from -40°C to +85°C, but it's recommended to operate it within a temperature range of -20°C to +70°C for optimal performance and reliability.
To ensure reliable operation in high-humidity environments, it's recommended to use a conformal coating on the PCB, ensure good ventilation, and avoid exposing the module to condensing humidity. Additionally, it's recommended to follow the manufacturer's guidelines for humidity testing and qualification.
The recommended power supply decoupling capacitors for the SI3019-F-FM are 10 nF and 100 nF capacitors, placed as close as possible to the module's power pins. These capacitors help to filter out noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI3019-F-FM Overview

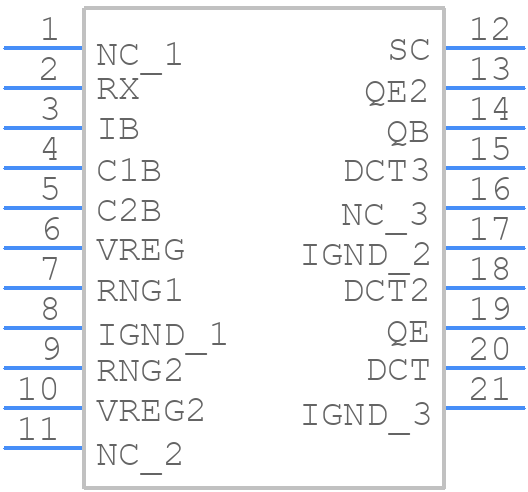

Use the download button to access the SI3019-F-FM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI301,
or try a keyword search, such as Modems
