SI3019-F-FTR - Skyworks

Description: Telecom IC Direct Access Arrangement (DAA), Line-side Voice DAA-Enhanced Global, 0 to +70 °C 16-TSSOP

Download SI3019-F-FTR Model

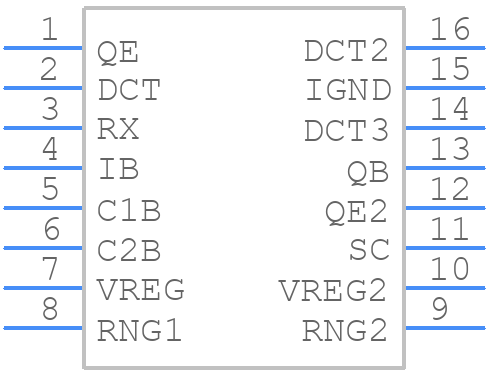

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI3019-F-FTR - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin TSSOP
click to zoom

SI3019-F-FTR Details

  • Manufacturer Part Number:

    SI3019-F-FTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    MODEM-SUPPORT CIRCUIT

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

SI3019-F-FTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the SI3019-F-FTR can be found in the Skyworks Solutions Inc. application note AN3029, which provides detailed guidelines for optimal performance and thermal management.
  • To ensure reliable operation across the entire operating temperature range, it is essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow. Additionally, ensure that the device is operated within the specified voltage and current limits.
  • Using a non-recommended voltage supply can lead to reduced performance, increased power consumption, and decreased reliability. It may also cause the device to operate outside of its specified parameters, potentially leading to premature failure or damage.
  • To troubleshoot common issues, start by verifying the PCB layout and component values against the recommended design. Check for proper power supply decoupling, and ensure that the device is operated within its specified parameters. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
  • The SI3019-F-FTR is a sensitive electronic component that requires proper ESD protection and handling. Follow standard ESD precautions, such as using anti-static wrist straps, mats, and packaging materials, and handle the device by the body only, avoiding direct contact with the pins.
