SI32178-B-FM1R - Skyworks

Description: Telecom IC Subscriber Line Interface Concept (SLIC), CODEC 42-QFN (5x7) , 44.2mA , 750mW , 0C to +70°C

Download SI32178-B-FM1R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

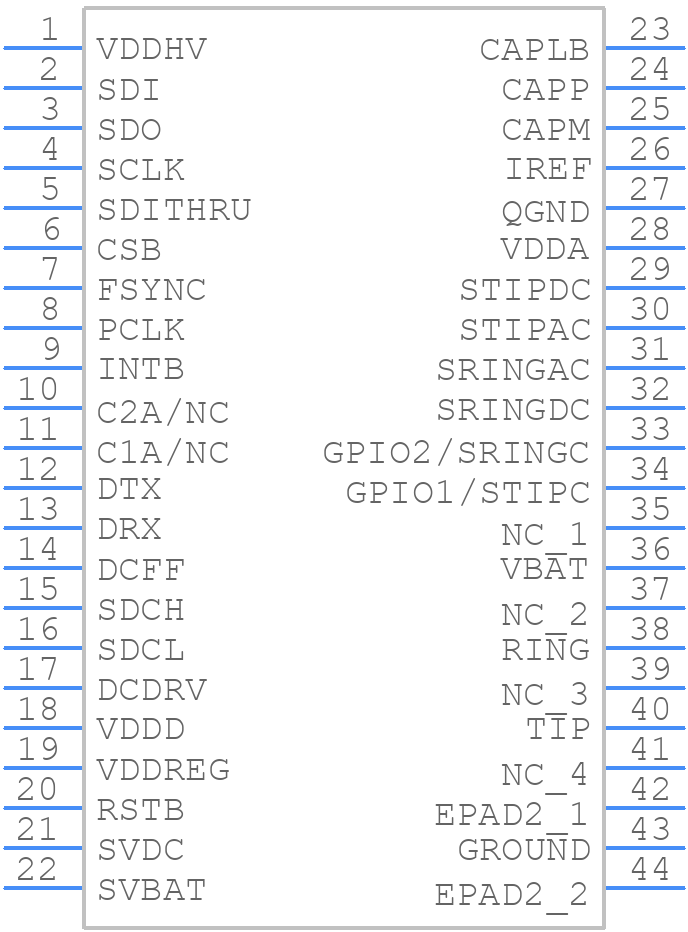

Symbol
SI32178-B-FM1R - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI32178-B-FM1R - Skyworks PCB footprint - Other - Other - 42-Pin LGA
click to zoom
3D Models
SI32178-B-FM1R - Skyworks - 3D model - Other - 42-Pin LGA
click to zoom

SI32178-B-FM1R Details

  • Manufacturer Part Number:

    SI32178-B-FM1R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-42

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Battery Feed:

    CONSTANT CURRENT/RESISTIVE

  • Battery Supply:

    -15 TO -110 V

  • Hybrid:

    2-4 CONVERSION

  • JESD-30 Code:

    R-XLGA-N42

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Noise-Max:

    12 dBrnC

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HLGA

  • Package Equivalence Code:

    LCC42,.27X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    SLIC

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

SI32178-B-FM1R Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Skyworks Solutions Inc. application note AN-3021, which provides guidelines for optimal performance and thermal management.
  • The device requires a bias voltage of 3.3V to 5V, and the recommended bias current is 10mA to 20mA. Ensure the bias circuit is designed to provide a stable voltage and current to the device.
  • The device is rated for operation from -40°C to 125°C, but it's recommended to operate within the -20°C to 85°C range for optimal performance and reliability.
  • The device has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the device is stored in an ESD-safe environment.
  • Store the device in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the leads, and handle the device by the body, not the leads.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI32178-B-FM1R Overview

Use the download button to access the SI32178-B-FM1R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI321, or try a keyword search, such as Analog Transmission Interfaces
