SI32179-B-FM1 - Skyworks

Description: PROSLIC® SINGLE-CHIP FXS SOLUTION WITH FXO OPTION

Download SI32179-B-FM1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

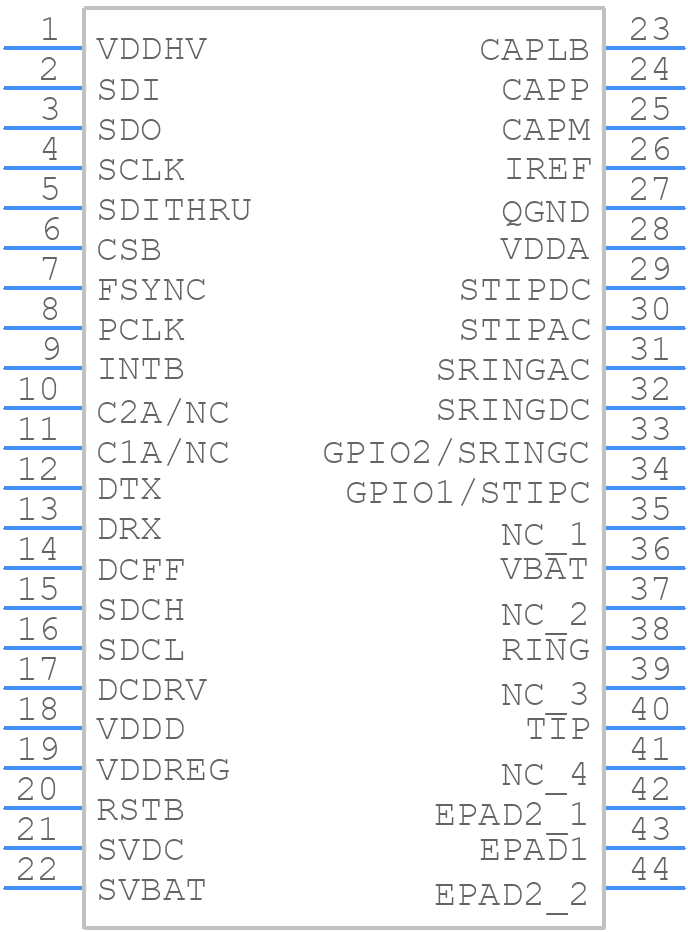

SI32179-B-FM1 - Skyworks - PCB symbol
click to zoom
PCB Footprints

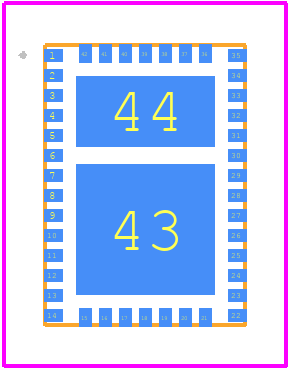

SI32179-B-FM1 - Skyworks PCB footprint - Other - Other - SI32179-B-FM1-2
click to zoom
3D Models
SI32179-B-FM1 - Skyworks - 3D model - Other - SI32179-B-FM1-2
click to zoom

SI32179-B-FM1 Details

  • Manufacturer Part Number:

    SI32179-B-FM1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-42

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Battery Feed:

    CONSTANT CURRENT/RESISTIVE

  • Battery Supply:

    -15 TO -136 V

  • Hybrid:

    2-4 CONVERSION

  • JESD-30 Code:

    R-XLGA-N42

  • Length:

    7 mm

  • Noise-Max:

    12 dBrnC

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HLGA

  • Package Equivalence Code:

    LCC42,.27X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    SLIC

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    5 mm

SI32179-B-FM1 Frequently Asked Questions (FAQs)

  • Skyworks provides a recommended PCB layout and land pattern in their application note AN40467, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Skyworks offers a free online tool, the Skyworks Matching Network Designer, which can help optimize the input and output matching networks for the SI32179-B-FM1. Additionally, the application note AN40467 provides guidance on matching network design.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, Skyworks recommends derating the device's power output above +70°C to ensure reliable operation and prevent overheating.
  • Skyworks provides guidance on EMC and EMI reduction in their application note AN40467. Additionally, following proper PCB layout and shielding practices, using filtering components, and implementing good design practices can help minimize EMI and ensure EMC.
  • Skyworks recommends following the JEDEC J-STD-020D.1 standard for soldering and assembly. Additionally, they provide specific guidance on reflow soldering and manual soldering in their application note AN40467.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI32179-B-FM1 Overview

Use the download button to access the SI32179-B-FM1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI321, or try a keyword search, such as Analog Transmission Interfaces
