SI3456DDV-T1-E3 - Vishay

Description: MOSFET 30V Vds 20V Vgs TSOP-6

Download SI3456DDV-T1-E3 Model
Schematic

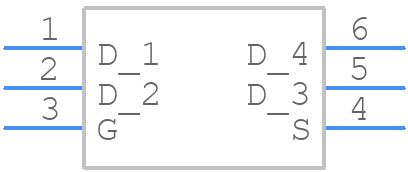

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI3456DDV-T1-E3 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - TSOP-6
click to zoom
3D Models
SI3456DDV-T1-E3 - Vishay  - 3D model - Small Outline Packages - TSOP-6
click to zoom

SI3456DDV-T1-E3 Details

  • Manufacturer Part Number:

    SI3456DDV-T1-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-193C, TSOP-6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    6.3 A

  • Drain-source On Resistance-Max:

    0.04 Ω

  • FET Technology:

    TRENCH MOSFET

  • Feedback Cap-Max (Crss):

    30 pF

  • JEDEC-95 Code:

    MO-193AA

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    2.7 W

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    42 ns

  • Turn-on Time-Max (ton):

    38 ns

SI3456DDV-T1-E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SI3456DDV-T1-E3 can be found in the Vishay Intertechnologies' application note AN81193, which provides guidelines for PCB layout and assembly.
  • The SI3456DDV-T1-E3 has a thermal pad that should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
  • The SI3456DDV-T1-E3 has an operating temperature range of -55°C to 150°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the device within a temperature range of -40°C to 125°C for optimal performance.
  • The SI3456DDV-T1-E3 is a commercial-grade device, but Vishay Intertechnologies offers a high-reliability version, the SI3456DDV-T1-E3HL, which is designed for high-reliability and aerospace applications. Contact Vishay Intertechnologies for more information on the high-reliability version.
  • Follow the recommended soldering profile and guidelines provided in the Vishay Intertechnologies' application note AN81193. Ensure the PCB is designed with a solder mask and a solder land pattern that matches the device's footprint. Use a solder with a melting point compatible with the device's temperature rating.
