The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad connection.
Use a Smith chart or a network analyzer to optimize the input and output matching networks. The goal is to achieve a conjugate match between the device's input/output impedance and the external circuitry. Skyworks provides a recommended matching network in the datasheet, but optimization may be necessary for specific applications.
Skyworks Solutions Inc has a robust quality control process in place, including rigorous testing, inspection, and certification to ensure the SI4133-D-GT meets industry standards. The device is also qualified to AEC-Q100 and is manufactured in accordance with IATF 16949.
Follow proper PCB layout and shielding techniques, use a common mode choke or ferrite bead to reduce EMI, and ensure the device is properly decoupled. Additionally, consider using a shielded enclosure and follow the recommended layout and grounding practices in the datasheet.
The device has a maximum junction temperature (Tj) of 150°C. Derate the power dissipation by 2.5 mW/°C above 25°C. Ensure good thermal management and follow the recommended thermal pad connection to minimize thermal resistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI4133-D-GT Overview

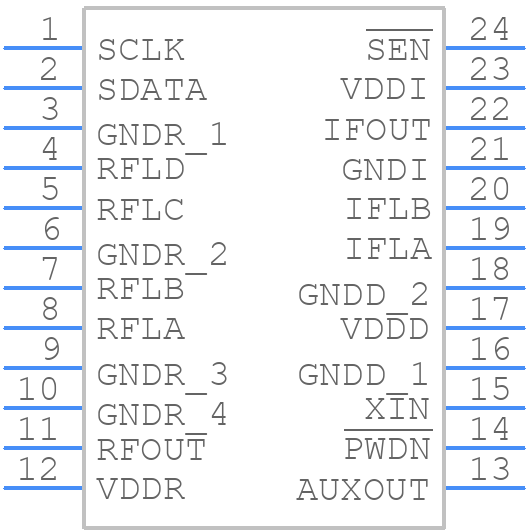

Use the download button to access the SI4133-D-GT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI413,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
