- Part Number SI4143DY-T1-GE3
- Manufacturer Vishay
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SI4143DY-T1-GE3
- Released Date Jan 17, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SI4143DY-T1-GE3 Details
-
Manufacturer Part Number:
SI4143DY-T1-GE3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
MS-012, SOIC-8
-
Country Of Origin:
Israel
-
ECCN Code:
EAR99
-
Factory Lead Time:
15 Weeks
-
Manufacturer:
Vishay Intertechnologies
-
YTEOL:
5
-
Avalanche Energy Rating (Eas):
45 mJ
-
Configuration:
SINGLE WITH BUILT-IN DIODE
SI4143DY-T1-GE3 Frequently Asked Questions (FAQs)
-
The recommended PCB footprint for the SI4143DY-T1-GE3 is a standard QFN16 package with a 3x3mm body size and 0.5mm pitch. A recommended land pattern is available in the Vishay Intertechnologies' application note or can be obtained from the manufacturer's website.
-
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder paste with a melting point compatible with the device's temperature rating, and ensure the PCB is designed with a suitable thermal relief pattern.
-
The SI4143DY-T1-GE3 has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
-
The SI4143DY-T1-GE3 is a moisture-sensitive device. It's recommended to follow the moisture sensitivity level (MSL) guidelines and handle the device in a controlled environment to prevent moisture absorption. If the device is exposed to high humidity, it's essential to follow the recommended baking and drying procedures before soldering.
-
To troubleshoot issues with the SI4143DY-T1-GE3, start by reviewing the device's datasheet and application notes. Check the PCB design, soldering quality, and power supply connections. Use oscilloscopes or logic analyzers to monitor the device's signals and identify potential issues. If the problem persists, contact Vishay Intertechnologies' technical support for further assistance.
Trust Checks
Community Provided
System Verified
Community Approved
SI4143DY-T1-GE3 Overview

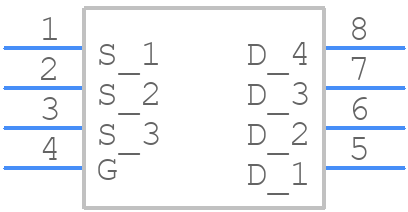

Use the download button to access the SI4143DY-T1-GE3 schematic symbol, PCB footprint, and 3D model.
