Please enter a minimum 3 letters or numbers
Technical Content
Part Image

SI4702-C19-GM - Skyworks

Description: Tuners Radio 108MHz Automotive 20-Pin QFN EP Tray

Download SI4702-C19-GM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

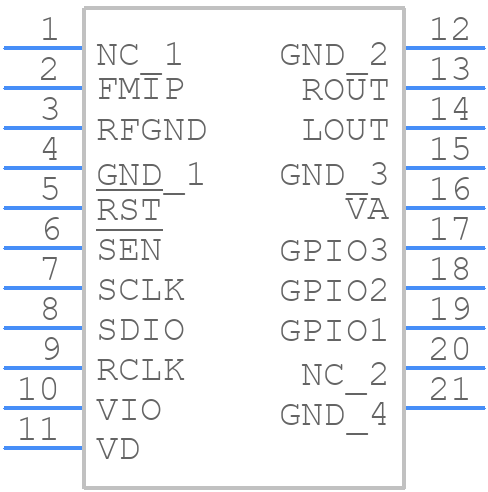

SI4702-C19-GM - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI4702-C19-GM - Skyworks PCB footprint - Other - Other - SI4702-C19-GM-2
click to zoom
3D Models
SI4702-C19-GM - Skyworks - 3D model - Other - SI4702-C19-GM-2
click to zoom

SI4702-C19-GM Details

  • Manufacturer Part Number:

    SI4702-C19-GM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    0

  • Built-in IF Amplifier:

    YES

  • Consumer IC Type:

    AUDIO TUNER

  • Input Frequency-Max (RF):

    108 MHz

  • Input Frequency-Min (RF):

    76 MHz

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    58 dB

  • Number of Bands:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

SI4702-C19-GM Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the SI4702-C19-GM involves placing the device near the antenna, using a solid ground plane, and minimizing the length of the antenna connection. A 4-layer PCB with a dedicated ground plane is recommended. The device's exposed pad should be connected to the ground plane.
  • To optimize the antenna design, use a 1/4 wavelength monopole antenna or a dipole antenna with a length of around 80mm. The antenna should be matched to the device's input impedance of 50 ohms. A balun or a matching network may be required to achieve optimal performance.
  • The recommended power-up sequence is to apply VCC first, followed by EN (enable) and then CLK (clock). This ensures that the device is properly initialized and configured before starting to receive data.
  • The SI4702-C19-GM's digital outputs are CMOS-compatible and can be connected directly to a microcontroller or other digital logic. However, it's recommended to use a buffer or a level shifter if the output is connected to a long cable or if the receiving device has a different voltage level.
  • The maximum operating temperature range for the SI4702-C19-GM is -40°C to +85°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI4702-C19-GM Overview

Use the download button to access the SI4702-C19-GM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI470, or try a keyword search, such as Tuner ICs

Parts related to SI4702-C19-GM

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

SI4702-C19-GM Alternates

Showing results

Image Part Number Model
Part Image SI4702-C19-GM Silicon Laboratories Inc

Audio Tuner, 2-Band, QCC20
Part Image SI4702-C19-GMR Skyworks Solutions Inc

Audio Tuner, 2-Band, QCC20
