The recommended PCB layout for optimal performance involves keeping the RF input and output traces as short as possible, using a solid ground plane, and placing the device near the antenna. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the digital signals, a layer for the power supply, and a layer for the ground plane.
To optimize the antenna design for best reception, it's recommended to use a quarter-wavelength monopole antenna or a dipole antenna with a length of around 75mm to 85mm. The antenna should be placed as close to the device as possible, and the orientation of the antenna should be perpendicular to the PCB. Additionally, the antenna should be matched to the device's input impedance of 50 ohms.
The maximum operating temperature range for the SI4704-D60-GMR is -40°C to +85°C. However, it's recommended to operate the device within a temperature range of -20°C to +70°C for optimal performance and reliability.
The SI4704-D60-GMR is a single-chip FM radio receiver that can operate in multiple frequency bands. To configure the device for different frequency bands, you need to program the device's registers using the I2C interface. The device has a built-in PLL that can be programmed to operate in different frequency bands, including the FM band (76MHz to 108MHz), the Japanese FM band (76MHz to 90MHz), and the European FM band (87.5MHz to 108MHz).
The typical current consumption of the SI4704-D60-GMR is around 15mA to 20mA when operating in the FM mode. However, the current consumption can vary depending on the operating frequency, the signal strength, and the device's configuration. It's recommended to use a power supply with a low noise floor and a high power supply rejection ratio (PSRR) to minimize the device's current consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI4704-D60-GMR Overview

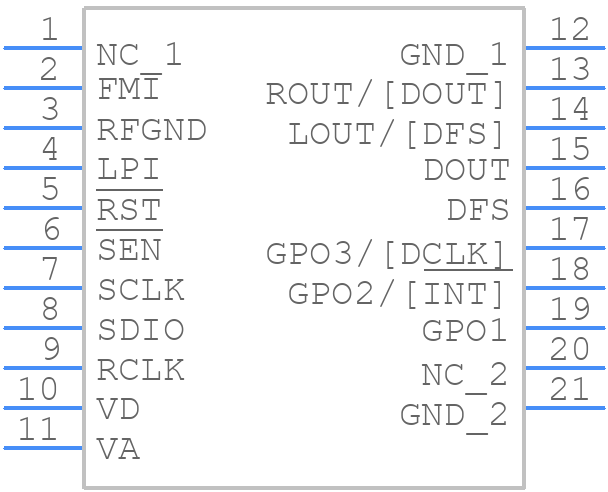

Use the download button to access the SI4704-D60-GMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI470,
or try a keyword search, such as Receiver ICs
