The recommended PCB layout for optimal performance involves keeping the RF traces as short as possible, using a solid ground plane, and placing the device near the antenna. A 4-layer PCB with a dedicated ground plane is recommended. The datasheet provides a recommended PCB layout, but it's essential to consult with Skyworks' application notes and layout guidelines for specific guidance.
Optimizing the antenna design involves selecting the right antenna type, size, and placement. The SI4735-D60-GMR is designed to work with a variety of antennas, including monopole, dipole, and loop antennas. Skyworks provides antenna design guidelines and recommendations in their application notes. It's essential to consider factors like antenna impedance, radiation pattern, and frequency response to ensure optimal performance.
The maximum power handling capability of the SI4735-D60-GMR is not explicitly stated in the datasheet. However, according to Skyworks' application notes, the device can handle up to +20 dBm of input power. It's essential to ensure that the device is operated within its recommended power handling range to prevent damage or degradation.
Implementing ESD protection for the SI4735-D60-GMR involves using external ESD protection devices, such as TVS diodes or ESD arrays, on the RF input and output pins. Skyworks recommends following industry-standard ESD protection guidelines, such as those provided by JEDEC, to ensure the device is protected from electrostatic discharge events.
The recommended operating temperature range for the SI4735-D60-GMR is -40°C to +85°C. However, the device can be operated at temperatures up to +105°C for short periods during manufacturing or testing. It's essential to ensure that the device is operated within its recommended temperature range to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
Si4735-D60-GMR Overview

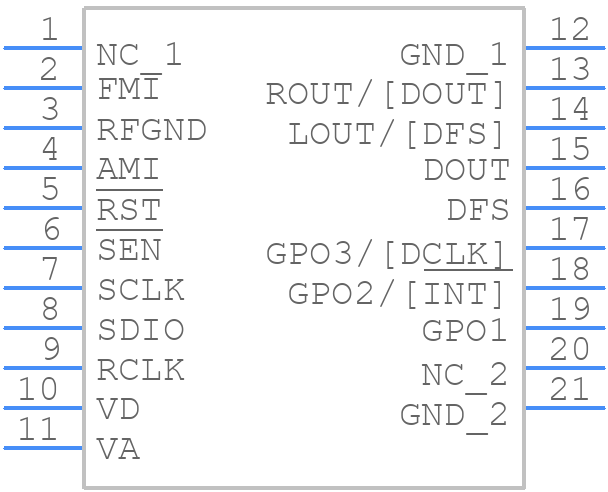

Use the download button to access the Si4735-D60-GMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like Si473,
or try a keyword search, such as Receiver ICs
