The recommended PCB layout for optimal performance involves keeping the RF traces as short as possible, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. The datasheet provides a recommended PCB layout, but it's essential to consult with a PCB design expert to ensure optimal performance.
Optimizing the antenna design involves selecting the right antenna type, size, and placement. The SI4736-C40-GM is designed to work with a variety of antennas, including wire antennas, PCB antennas, and external antennas. The datasheet provides guidelines for antenna selection, but it's recommended to consult with an antenna design expert or use simulation tools to optimize the antenna design for the specific application.
The maximum operating temperature range for the SI4736-C40-GM is -40°C to +85°C. However, the device can be operated at temperatures above +85°C for short periods, but this may affect its reliability and performance. It's essential to consult with the manufacturer or a thermal design expert to ensure the device operates within its recommended temperature range.
Ensuring EMC with other devices involves following proper PCB design and layout practices, using shielding, and implementing filtering and isolation techniques. The SI4736-C40-GM has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Consult with an EMC expert to ensure the device meets the required EMC standards.
The recommended power-up sequence for the SI4736-C40-GM involves powering up the device in the following order: VCC, VIO, and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage. Consult the datasheet for the specific power-up sequence and timing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI4736-C40-GM Overview

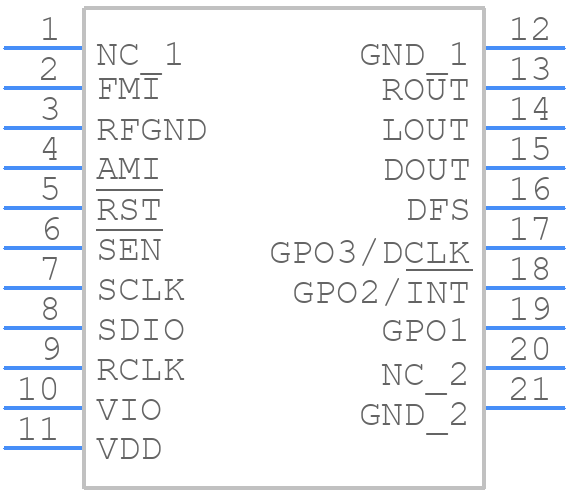

Use the download button to access the SI4736-C40-GM schematic symbol, PCB footprint, and 3D model.
