SI4825-A10-CSR footprint, schematic symbol and 3D model by Skyworks

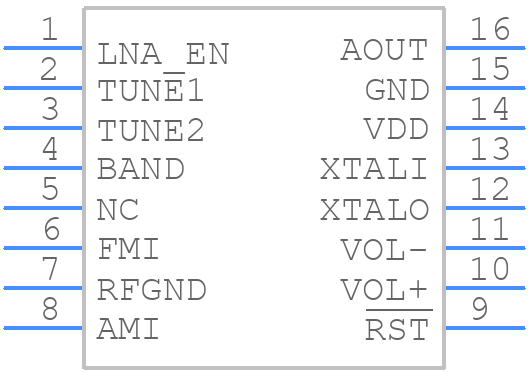

Symbol

PCB Footprints

3D Models

SI4825-A10-CSR Details

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
The device requires a 2.7V to 5.5V power supply. Ensure the voltage regulator is stable and has low noise. Use a 10uF capacitor between VCC and GND, and a 1uF capacitor between AVCC and GND.
A quarter-wavelength monopole antenna or a dipole antenna with a 50-ohm impedance is recommended. The antenna should be matched to the device's output impedance for optimal performance.
Use a spectrum analyzer to check the transmitted signal's frequency and power. Verify the device's power supply and biasing. Check for proper antenna connection and impedance matching. Consult the datasheet and application notes for troubleshooting guides.
The device is rated for operation up to 85°C. However, high temperatures can affect its performance and reliability. Ensure proper thermal management and consider using a heat sink if operating in high-temperature environments.

Community Provided

System Verified

Community Approved

Use the download button to access the SI4825-A10-CSR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SI482, or try a keyword search, such as Receiver ICs

If you searched for SI4825-A10-CSR, you might also be interested in these parts:

Showing 0 results

Image	Part Number	Model
	SI4825-A10-CSR Silicon Laboratories Inc Audio Single Chip Receiver
For a full list of alternate parts for SI4825-A10-CSR, check out Findchips.com
