Skyworks provides a recommended PCB layout and land pattern in their application note AN4031, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and prevent thermal issues.
Skyworks offers a free online tool, the Skyworks Tuning Wizard, which helps designers optimize the input and output matching networks for their specific application. The tool provides a step-by-step guide to determine the optimal component values and layout.
Although the datasheet specifies an operating temperature range of -40°C to +85°C, Skyworks recommends derating the device's power output above +70°C to ensure reliable operation and prevent thermal damage.
Skyworks provides guidelines for EMC and EMI reduction in their application note AN2002. It's essential to follow these guidelines, including proper shielding, grounding, and layout techniques, to ensure compliance with regulatory requirements and prevent interference with other devices.
Skyworks recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling and filtering. A 10uF ceramic capacitor and a 10uF electrolytic capacitor in parallel, placed close to the device's power pins, can help reduce noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI4831-B30-GU Overview

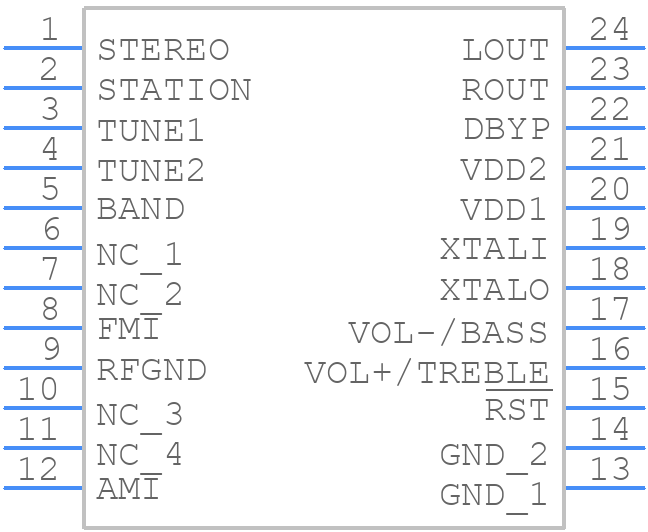

Use the download button to access the SI4831-B30-GU schematic symbol, PCB footprint, and 3D model.
