SI4943BDY-T1-E3 - Vishay

Description: Vishay SI4943BDY-T1-E3 P-channel MOSFET Module, 6.3 A, -20 V, 8-Pin SOIC

Download SI4943BDY-T1-E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

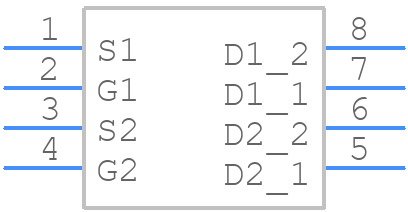

SI4943BDY-T1-E3 - Vishay - PCB symbol
click to zoom
PCB Footprints
SI4943BDY-T1-E3 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - SOIC (NARROW) 8-LEAD
click to zoom
3D Models
SI4943BDY-T1-E3 - Vishay - 3D model - Small Outline Packages - SOIC (NARROW) 8-LEAD
click to zoom

SI4943BDY-T1-E3 Details

  • Manufacturer Part Number:

    SI4943BDY-T1-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MS-012, SOIC-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    6.3 A

  • Drain-source On Resistance-Max:

    0.019 Ω

  • FET Technology:

    TRENCH MOSFET

  • JEDEC-95 Code:

    MS-012AA

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.1 W

  • Pulsed Drain Current-Max (IDM):

    30 A

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61249-2-21

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    230 ns

  • Turn-on Time-Max (ton):

    32 ns
