SI52111-B5-GM2 - Skyworks

Description: Clock Generators & Support Products 1-output PCIe Gen 3 clock generator

Download SI52111-B5-GM2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

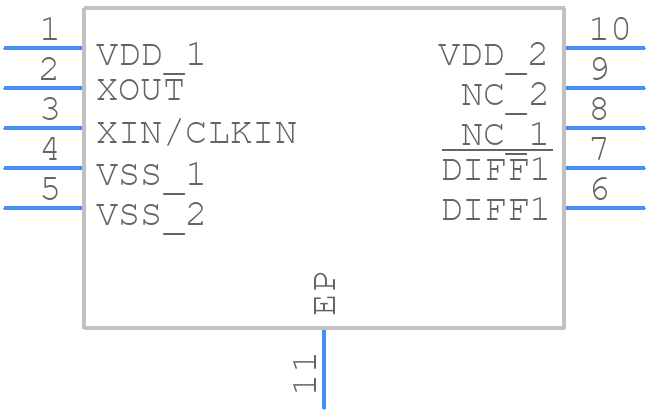

Symbol
SI52111-B5-GM2 - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI52111-B5-GM2 - Skyworks PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Pin TDFN
click to zoom
3D Models
SI52111-B5-GM2 - Skyworks - 3D model - Small Outline No-lead - 10-Pin TDFN
click to zoom

SI52111-B5-GM2 Details

  • Manufacturer Part Number:

    SI52111-B5-GM2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TDFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    6.76

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.46 V

  • Supply Voltage-Min:

    3.13 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

SI52111-B5-GM2 Frequently Asked Questions (FAQs)

  • Skyworks provides a recommended PCB layout and land pattern in their application note AN40465, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Skyworks offers a free online tool, the Skyworks Matching Network Tool, which can help optimize the input and output matching networks for your specific application. You can also consult with Skyworks' application engineers for customized support.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device can be operated at higher temperatures with derating. Consult with Skyworks' application engineers for specific guidance on operating temperature ranges beyond 85°C.
  • To ensure EMI compliance, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and using shielding where necessary. Additionally, consider using EMI filters or absorbers to reduce emissions. Consult with Skyworks' application engineers for specific guidance on EMI compliance.
  • Skyworks recommends following the JEDEC J-STD-020D.1 standard for soldering this device. It's essential to use a controlled soldering process to prevent damage to the device and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI52111-B5-GM2 Overview

Use the download button to access the SI52111-B5-GM2 schematic symbol, PCB footprint, and 3D model.
