SI52142-A01AGMR - Skyworks

Description: PCI Express (PCIe) IC 200MHz 1 Output 24-QFN (4x4)

Download SI52142-A01AGMR Model

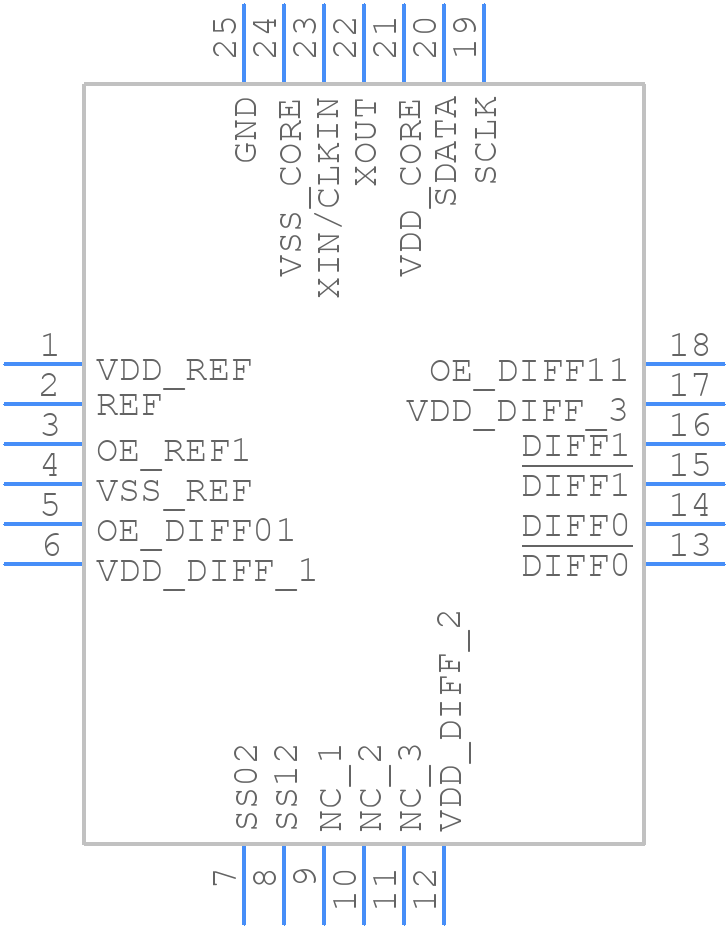

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI52142-A01AGMR - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin Quad Flat No Lead (QFN) Package
click to zoom
3D Models
SI52142-A01AGMR - Skyworks  - 3D model - Quad Flat No-Lead - 24-Pin Quad Flat No Lead (QFN) Package
click to zoom

SI52142-A01AGMR Details

  • Manufacturer Part Number:

    SI52142-A01AGMR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    6.48

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    200 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

SI52142-A01AGMR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Refer to the Skyworks application note for detailed layout guidelines.
  • Use a Smith chart or simulation tools like ADS or AWR to design and optimize the input and output matching networks. Consider the device's S-parameters and the specific application's requirements.
  • Follow the JEDEC J-STD-020 standard for soldering and handling. Use a soldering iron with a temperature of 260°C (500°F) or less, and avoid exposing the device to moisture or mechanical stress.
  • Use a shielded enclosure, ensure proper grounding, and follow good PCB layout practices. Consider adding EMI filters or shielding components as needed. Refer to the Skyworks application note for EMC guidelines.
  • The device has undergone rigorous qualification tests, including temperature cycling, humidity, and vibration testing. Refer to the Skyworks reliability report for detailed information on the testing and results.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI52142-A01AGMR Overview

Use the download button to access the SI52142-A01AGMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI521, or try a keyword search, such as Clock Generators
