SI52147-A01AGM - Skyworks

Description: PCI-Express Gen 1, Gen 2, Gen 3, and Gen 4 common clock compliant Gen 3 SRNS Compliant Supports Serial-ATA (SATA) at 100 MHz Low power push-pull HCSL compatible differential outputs No termination resistors required Output enable pins for all clocks Spread enable pin 25 MHz crystal input or clock input

Download SI52147-A01AGM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

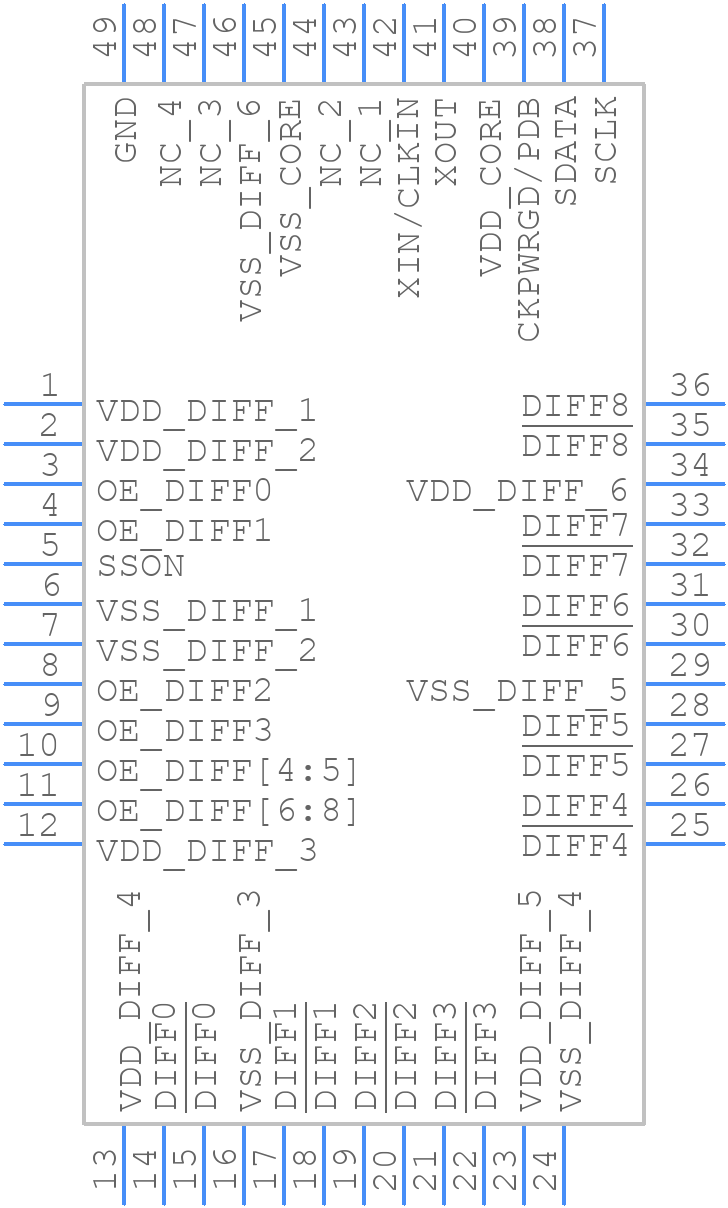

SI52147-A01AGM - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI52147-A01AGM - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Lead 6 x 6 mm QFN..
click to zoom
3D Models
SI52147-A01AGM - Skyworks - 3D model - Quad Flat No-Lead - 48-Lead 6 x 6 mm QFN..
click to zoom

SI52147-A01AGM Details

  • Manufacturer Part Number:

    SI52147-A01AGM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, MO-220VGGD-8, QFN-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    6.94

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    6 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

SI52147-A01AGM Frequently Asked Questions (FAQs)

  • Skyworks provides a recommended PCB layout and land pattern in their application note AN40465, which should be followed to ensure optimal performance and minimize parasitic effects.
  • The SI52147-A01AGM has a thermal pad that should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal via array can also be used to improve heat dissipation. Additionally, the device should be operated within the recommended temperature range to prevent overheating.
  • The recommended input and output matching network can be found in the Skyworks application note AN40465. The matching network should be designed to optimize the impedance match between the device and the external circuitry to achieve the best possible performance.
  • Troubleshooting common issues with the SI52147-A01AGM typically involves checking the PCB layout and assembly, ensuring proper input and output matching, and verifying that the device is operated within the recommended operating conditions. Skyworks also provides a troubleshooting guide in their application note AN40465.
  • The recommended biasing and power supply configuration can be found in the Skyworks datasheet and application note AN40465. The device requires a single positive supply voltage and a bias voltage, which should be decoupled and filtered to prevent noise and ripple.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI52147-A01AGM Overview

Use the download button to access the SI52147-A01AGM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI521, or try a keyword search, such as Clock Generators
