Si52208-A01AGM - Skyworks

Description: Clock Generators & Support Products 1.5-1.8 V 8-output PCIe Gen 1/2/3/4 + 25 MHz LVCMOS clock generator, with 100? internal termination

Download Si52208-A01AGM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

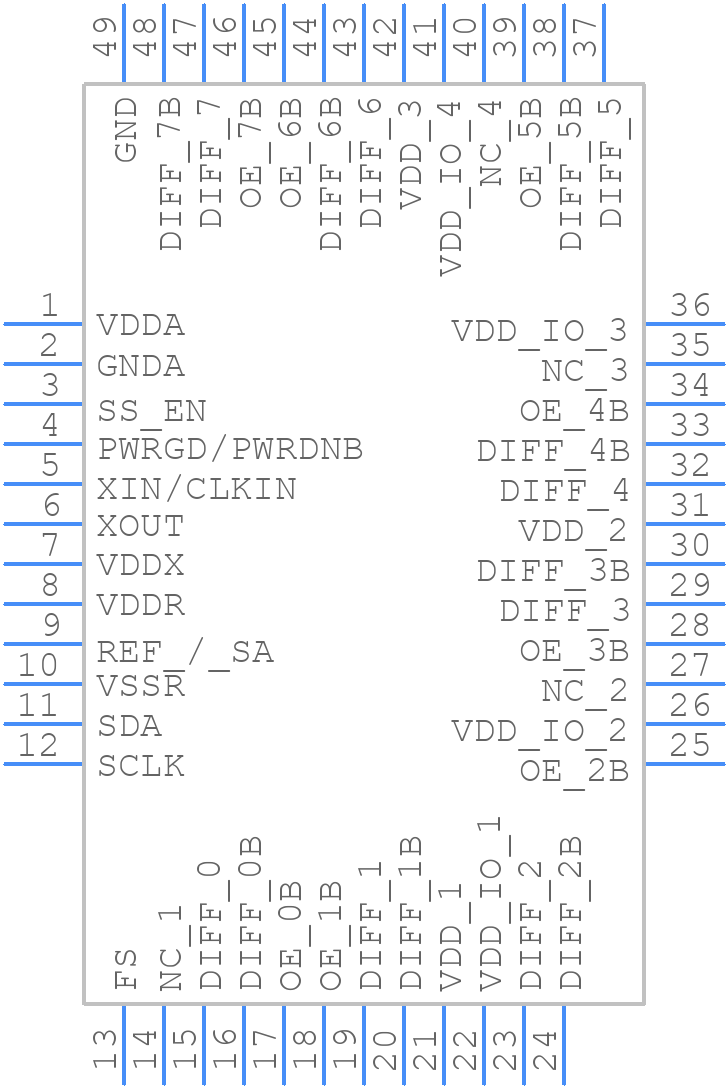

Si52208-A01AGM - Skyworks - PCB symbol
click to zoom
PCB Footprints
Si52208-A01AGM - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Lead 6 x 6 mm QFN
click to zoom
3D Models
Si52208-A01AGM - Skyworks - 3D model - Quad Flat No-Lead - 48-Lead 6 x 6 mm QFN
click to zoom

Si52208-A01AGM Details

  • Manufacturer Part Number:

    SI52208-A01AGM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7.78

  • Additional Feature:

    ALSO OPERATE AT 1.8V SUPPLY, PCIE GENERATION 1, 2, 3, 4, 5

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    6 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    200 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    58.5 mA

  • Supply Voltage-Max:

    1.575 V

  • Supply Voltage-Min:

    1.425 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe
