SI53152-A01AGM - Skyworks

Description: Clock Buffer PCI-express Gen1/2/3 1:2 fan-out buffer

Download SI53152-A01AGM Model

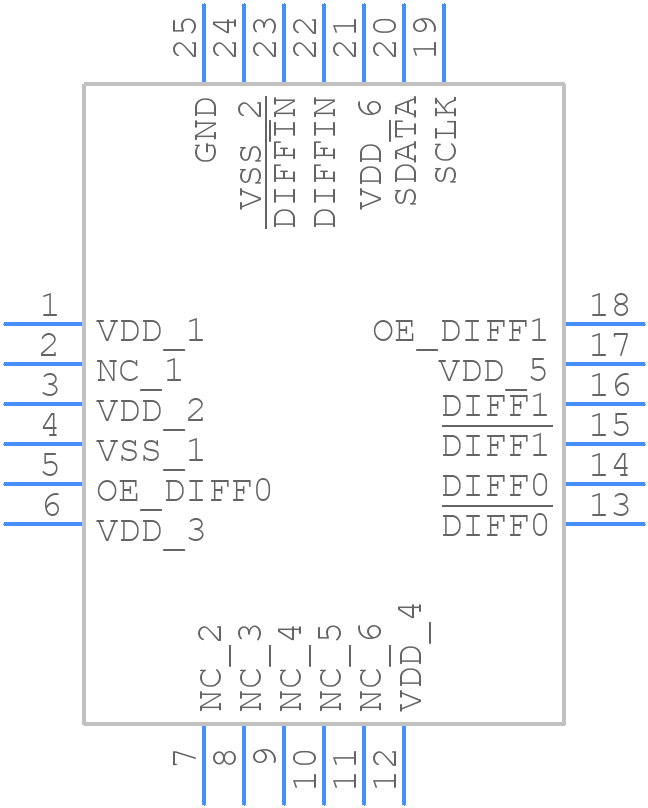

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI53152-A01AGM - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin Quad Flat No Lead (QFN) Package
click to zoom
3D Models
SI53152-A01AGM - Skyworks  - 3D model - Quad Flat No-Lead - 24-Pin Quad Flat No Lead (QFN) Package
click to zoom

SI53152-A01AGM Details

  • Manufacturer Part Number:

    SI53152-A01AGM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    6.95

  • Family:

    53152

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.001 A

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

SI53152-A01AGM Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use a thermal pad on the bottom of the device and connect it to a thermal plane on the PCB.
  • Use a Smith chart or a network analyzer to optimize the input and output impedance matching networks. The device's input and output impedances are 50 ohms, but the optimal matching network values may vary depending on the specific application and frequency range.
  • The recommended operating voltage is 3.3V, and the maximum current is 150mA. Ensure the power supply is stable and well-regulated to prevent damage to the device.
  • Use a shielded enclosure, and ensure the PCB layout is optimized for minimal radiation. Use a common-mode choke or a ferrite bead on the power supply lines to reduce EMI. Ensure the device is placed at least 1mm away from the PCB edge to reduce radiation.
  • Store the devices in their original packaging, away from direct sunlight and moisture. Handle the devices by the body, avoiding touching the pins or electrical connections. Use an anti-static wrist strap or mat when handling the devices.
